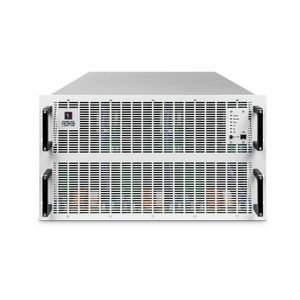

Rack-mount power supply EA series

DCregulatedvariable-output

Overview

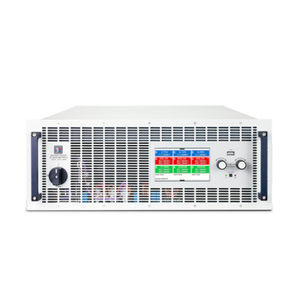

Configure 3U, 4U and 6U devices into 42U, 38U, 24U and 15U racks. Combine EA-10000 and EA-10000 Industrial series bidirectional power supplies, programmable power supplies, or regenerative loads. Parallel connection scales system power up to 3.84 MW (64 devices across 13 racks); a single 42U rack can host five 60 kW units (300 kW).

At a Glance

• Rack sizes: 42U, 38U, 24U, 15U
• Device heights: 3U, 4U, 6U
• Supported device types: bidirectional (regenerative) power supplies, programmable supplies, regenerative loads
• Power: up to 300 kW per 42U rack; up to 3.84 MW in multi-rack configurations (13 racks, 64 devices)
• Series: EA-10000, EA-10000 Industrial, EA-PSB 20000, EA-BT 20000 (air/water-cooled)
• Footprint: 19" cabinets, 39.4" depth (≈1001 mm)
• Delivery: turnkey rack systems
• Typical applications: battery test (cell/module/pack), fuel-cell test, photovoltaics, electrolysis, other DC high‑power uses

Key Performance
Power: up to 3.84 MW (system)
Voltage: up to 3000 V per rack
Current: up to 8000 A per rack

Safety & Protection

• Integrated safety system
  Prepared for connection to 3-phase mains (typ. 400 V). Includes fast stop (emergency stop) and rear-door contact switches.
• Central safety relay
  Monitors safety chain and can disconnect redundant AC contactors when required.
• Fuse protection
  All devices and cabling protected by dedicated fuses.

Options

• Water Cooling
  Preinstalled water distribution for low-noise, high-density environments.
• NS Protection (Network & Supply)
  Monitors AC grid to prevent islanding and shuts down the rack on mains faults.
• Insulation Monitor
  Detects insulation faults between DC output and earth and triggers system shutdown if needed.
• DC Contactor
  Provides safe disconnection between the power system and the DUT; integrated into the fast-stop chain.
• DC Copper Bar (Busbar)
  Facilitates paralleling of multiple devices to boost rack output performance.
• Ethernet Switch
  Optional 24-port switch for consolidated multi-channel control via a single Ethernet interface.
• Signal Lamp
  Provides clear visual system status indication.

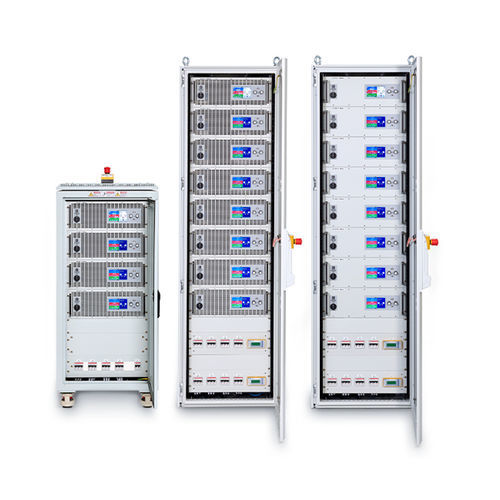

Rack Configurations & Use Cases

• 15U cabinet — up to 60 kW: compact footprint for labs or entry-level setups.
• 24U cabinet — up to 180 kW: balanced size for mid-range applications and scalability.
• 42U cabinet — up to 300 kW: high power density for industrial or R&D environments; scalable to multi-rack systems.
• Multi-rack systems — up to 3.84 MW (13 racks): consolidated emergency-stop chain and minimal overall footprint for large installations.

Software

• EA Power Control — Windows software package to manage, control and program EA devices from a PC. Provides HMI-equivalent control and advanced simulation/testing functions.

Models (summary)
EA-FCTS 20920-720 | 0–180 kW | 0–920 V | 0–720 A per channel | 1 Channel
EA-BCTS 20010-600-18 | 0–6 kW | 0–10 V | 0–600 A per channel | 18 Channels
EA-BMTS 20200-840-2 | 0–60 kW | 0–200 V | 0–840 A per channel | 2 Channels
EA-BPTS 20920-720 | 0–180 kW | 0–920 V | 0–720 A per channel | 1 Channel

Technical specifications

• Max system power: up to 3.84 MW (13 racks, 64 devices)
• Max rack power (example 42U): up to 300 kW (5 × 60 kW); select Americas configurations up to 360 kW
• Max voltage per rack: up to 3000 V
• Max current per rack: up to 8000 A
• Supported rack sizes: 42U, 38U, 24U, 15U
• Supported device heights: 3U, 4U, 6U
• Cooling: air-cooling standard; optional water-cooling for selected 4U/6U modules
• Interfaces: USB, Ethernet and analog interfaces standard; optional 24-port Ethernet switch
• Protection: OVP, OCP, OT, integrated DC contactors, insulation monitor, central safety relay, fuse protection
• Typical applications: battery cell/module/pack testing, fuel-cell testing, PV testing, electrolysis and other DC high-power applications
