Test probe D4x0-A

activevoltagefor oscilloscopes

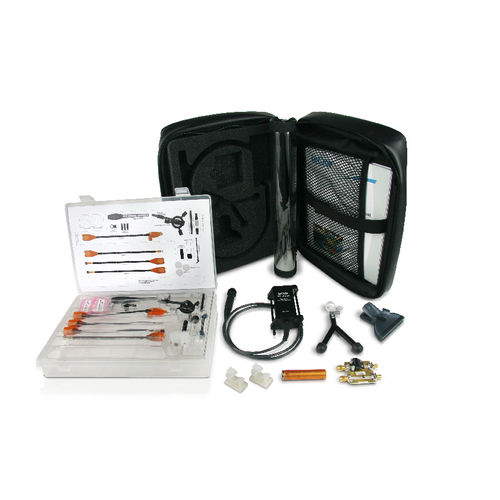

Differential active probes are like two probes in one. Instead of measuring a test point in relation to a ground point (like single-ended active probes), differential probes measure the difference in voltage of a test point in relation to another test point. Dx10/Dx20/Dx00A-AT 4-6 GHz differential probes are a general purpose probing solution with high input dynamic range and offset. Key Features Choice of 4 GHz or 6 GHz bandwidth models Up to 5 Vpk-pk dynamic range with low noise ±3 V offset range Low loading and high impedance for minimal signal disturbance Ideal for DDR2, DDR3, LPDDR2 Deluxe soft carrying case Innovative QuickLink architecture Wide variety of tips and leads Solder-In Lead Optional Positioner (Browser) Tip Quick Connect Lead Square Pin Lead HiTemp Solder-In Lead WaveLink 4-6 GHz Probes Teledyne LeCroy's WaveLink 4-6 GHz Differential Probes are a general purpose probing solution with high input dynamic range and offset. wavelink probes Complete Probe System A value-priced, comprehensive bundle of all items including the differential probe, a solder-in tip, quick connect tip, square pin tip, accessories, and a deluxe soft carrying case to hold all items. High Dynamic Range and Offset The combination of bandwidth, high input dynamic range and large offset range make the Dx10 & Dx20 ideal for DDR applications. wavelink probes Deluxe Soft Carrying Case The D4x0/D6x0 probe series includes a deluxe soft carrying case which stores all components of the complete probe system in one convenient location.
