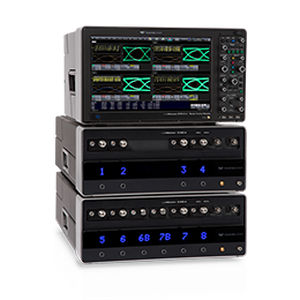

Digital oscilloscope LabMaster 10 Zi-A

analogbench-topmulti-channel

The LabMaster 10 Zi is the world's highest-performance modular oscilloscope - it breaks channel count barriers and provides more "bandwidth density". The modular design provides the simplest upgrade path in bandwidth and channel count, with one acquisition module providing four channels at 36 GHz or two channels at 65 GHz, with capability for up to 20 acquisition modules The Ultimate in High Bandwidth Performance Up to 65 GHz Up to 80 Channels @ 36 GHz Up to 160 GS/s Up to 512 Mpts/Ch 50 fs rms Sample Clock (Intrinsic) Jitter Jitter Between All Channels of <130 fs rms LabMaster 10 Zi modular systems re-define oscilloscope performance and capabilities. Multi-channel operation at the highest bandwidths 40 channels @ 65, 60 or 50 GHz 80 channels @ 36, 30, or 25 GHz Bandwidth and channel upgrade flexibility ChannelSync for precise synchronization of all acquisition modules <130 fs rms Jitter Between All Channels Server-class CPU w/ 32 GB RAM standard Ultra-high stability sample clock, Jitter <50 fs rms 4.9 ps (20-80%) rise time 14.1 Gb/s hardware serial trigger Main Specifications Input Channels - 4 to 80 Resolution - 8-bit Max Sampling Rate - 160 GS/s Max Memory - 512 Mpts Memory - 20 Mpts - 512 Mpts
