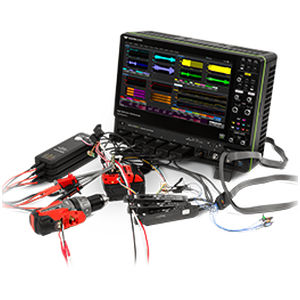

Digital oscilloscope MDA 8000HD series

analogbench-topmulti-channel

The Motor Drive Analyzer is built on an 8 channel, 12-bit resolution oscilloscope platform. It acquires any signal and performs three-phase electrical and mechanical power calculations. It provides complete power section and embedded control test coverage. Key Features •Static power analysis - like a dedicated power analyzer •Dynamic power analysis – capture more information •Complete test coverage – control system, power section, motor •Comprehensive mechanical interface •Harmonics calculation option •Vector display option (THREEPHASEVECTOR) •Waveform Transformations option (THREEPHASEdq0) •16 Channels with OscilloSYNC™ Static Power Analysis The mean-value Numerics table displays voltage, current, power, speed, torque, etc. values for short (or long) time periods during constant load, speed and torque operating conditions - just like what a dedicated power analyzer instrument provides. Dynamic Power Analysis Capture thousands of power cycles over long time periods. Per-cycle Waveform views help you understand dynamic behaviors. Use Zoom+Gate to isolate and correlate power behaviors to control system operation during dynamic load, speed, and torque operating conditions. Complete Test Coverage Acquire and display analog, digital and serial data signals from both power and embedded control systems. Correlate power system behaviors to control system activity during time periods as short as a single device switching cycle. Comprehensive Mechanical Interface Nine speed, four angle, and five torque sensors supported – most supported only by the Motor Drive Analyzer. Calculate mechanical power at your bench without external sensors connected.
