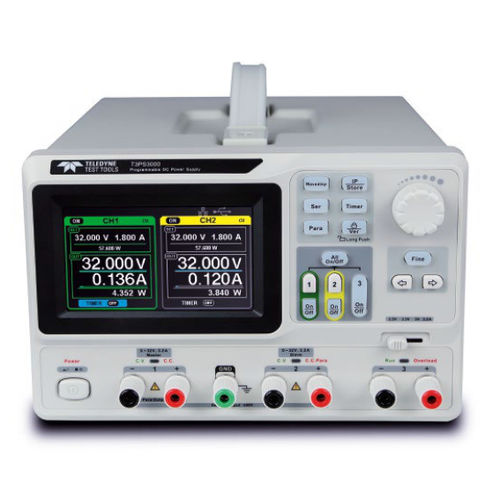

Suitcase power supply T3PS series

DC/DCsingle-outputlow-noise level

The Teledyne Test Tools range of DC Power Supplies comes in non-programmable and programmable versions with one, two, three and four output configurations. Key features within the Teledyne Test Tool Power Supply range include programmability via USB or LAN, a graphical display of power waveforms, as well as high resolution numeric display of voltage and current. Typical customer applications for DC Power Supplies include those in industries such as mobile, automotive, communications, defense, and manufacturing as well as those within teaching, education and research institutions. With the maximum output power of 385 W, the new T3PS Series multi-channel programmable DC power supply, offers two models: T3PS30063P (Ch1 & Ch2: 0–30 V/0-6 A, CH3: 1.8 V, 2.5 V, 3.3 V, 5.0 V/5 A) T3PS60033P (Ch1 & Ch2: 0–60 V/0-3 A, CH3: 1.8 V, 2.5 V, 3.3 V, 5.0 V/5 A) 4.3” TFT LCD Display Supports Setting Value, Measurement Value and Output Waveform Display. Supports Series and Parallel operations on Ch1 and Ch2 without the need for external wiring. Fully programmable via USB, RS- 232, LAN and Ext I/O. Low Ripple Noise ≤ 1 mVrms and transient recovery time ≤ 100 μs. Ch1 and Ch2 support Electronic Load functionality as CV, CC or CR. Ch1 and Ch2 support Constant Voltage and Constant Current Operation Multi-range operation extends the Voltage and Current limit up to 3 times compared to conventional supply. Adjustable Slew Rates for the level transition of both Current and Voltage. Ch1 and Ch2 support Constant Voltage and Constant Current Operation. Fully programmable via LAN and USB interface.
