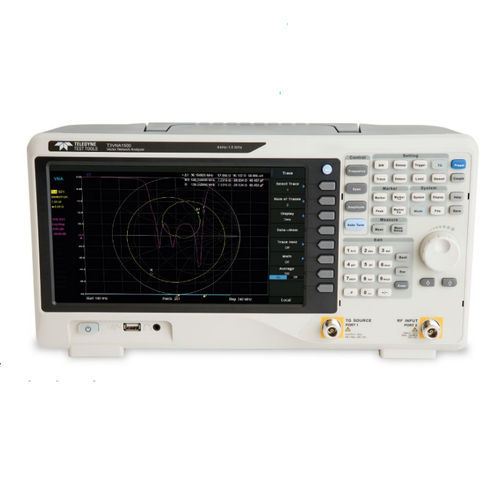

Vector network analyzer T3VNA series

signalfor testingspectrum

The Teledyne Test Tools range of T3VNA Vector Network Analyzers consist of two models with a Vector Network Analysis frequency range of 10 MHz up to a maximum of 3.2 GHz and a Spectrum Analysis frequency range from 9 kHz up to a maximum of 3.2 GHz. The small footprint and easy user interface is augmented by a high performance specification with many advanced measurement functions and capabilities. Teledyne Test Tools T3VNA family of Vector Network Analyzers consists of models with various Vector Network Analysis frequency ranges from as low as 100 kHz up to 3.2 GHz and Spectrum Analysis frequency range from 9 kHz up to 3.2 GHz depending on model. Features and Benefits •Vector Network Analyzer Frequency Range from 10 MHz up to 3.2 GHz •Spectrum Analyzer Frequency Range from 9 kHz up to 3.2 GHz •-156 dBm/Hz Displayed Average Noise Level (Typ.) •-98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.) •Total Amplitude Accuracy < 1.2 dB •1 Hz Minimum Resolution Bandwidth (RBW) •All-Digital IF Technology •Standard Preamplifier •Distance to fault capability using VNA time domain analysis •Up to 1.5 GHz Tracking Generator Kit •Built-in Advanced Measurement capability (CHP, ACPR, OBW, CNR, TOI, etc) •10.1 lnch WVGA (1024 x 600) Display
