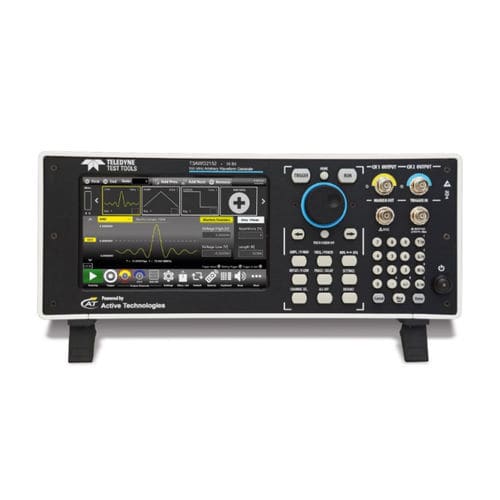

Arbitrary waveform generator T3AWG2K Series

pulsefrequencyvoltage

The T3AWG2K series consists of two affordable dual-channel arbitrary waveform generators, 16-bit vertical resolution, 6 Vpp output voltage (50Ω to 50Ω), 128 Mpts/ch memory, a maximum sampling rate of 600 MS/s and a maximum sine wave frequency of 150 MHz. The T3AWG2152-D mainframe adds 8 synchronized digital channels to the analog outputs, ideal for debugging and digital design validation. •150 MHz, 2 analog channels •8 synchronized digital channels (T3AWG2152-D only) •16-bit vertical resolution •128 MPts @Ch waveform memory •Max sampling rate of 600 MS/s The disruptive and innovative architecture enables to generate/add 8, 16 or 32 channel digital patterns (respectively on 2,4 or 8 analog channels platform) and to operate all models in true arbitrary mode or Direct Digital Synthesis (DDS) mode. Thanks to their high performance, versatile functionality and outstanding usability, the HD T3AWG3K series is the ideal AWG generator for today's and tomorrow's test challenges.
