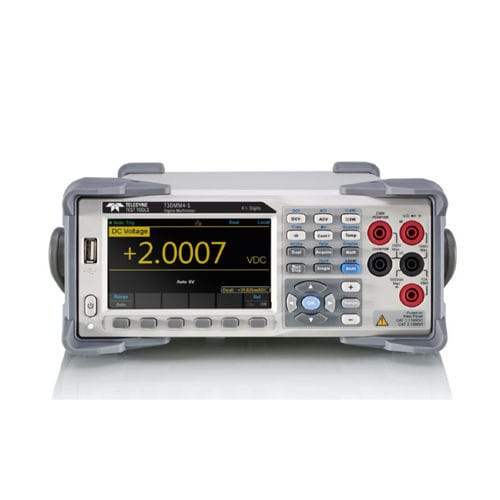

Graphic multimeter T3DMM series

digitalbenchtop1000 V

Teledyne Test Tools new T3DMM series are dual display digital desktop multimeters that provide a rich and powerful feature set. The design is easy-to-use from the front-panel and computer-based control via USB or LAN. Each model is equipped with a 4.3 inch TFT-LCD true color screen with 480 * 272 resolution for easy viewing. The T3DMM series also features numerical data display, histograms, trend charts, bar charts and statistics, in addition to the built-in arithmetic functions including Measurement statistics. Key Features Available in 4.5 digit (60,000 count) and 6.5 digit (2,200,000 count) models. Math functions include: Max, Min, Average, Standard Deviation, dBm/dB, Relative Measurement, Pass/Fail Histogram, Trend Chart, Bar Meter etc. True RMS AC Voltage and Current Measurements. Support for remote control operation. Main Features and Functions of the T3DMM4-5 Real 4½ digit (60,000 counts) readings resolution Up to 150 rdgs/s measurement speed True-RMS AC Voltage and AC Current measuring 1 Gb NAND flash size, Mass storage configuration files and data files Built-in cold terminal compensation for thermocouple Standard interface: USB Device, USB Host, LAN DC Voltage: 600 mV ~ 1000 V DC Current: 600 μA ~ 10 A AC Voltage: True-RMS, 600 mV ~ 750 V AC Current: True-RMS,60 mA ~ 10 A 2/4-Wire Resistance: 600 Ω ~ 100 MΩ Capacitance: 2 nF ~ 10000 μF Continuity Test: Rang e is fixed at 2 kΩ Diode Test: Adjustable range is 0~4 V. Period Measurement: 2 μs ~ 0.05 s Temperature: Support for TC and RTD sensor Max, Min, Average, Standard Deviation, dBm/dB, Relative Measurement, Pass/Fail
