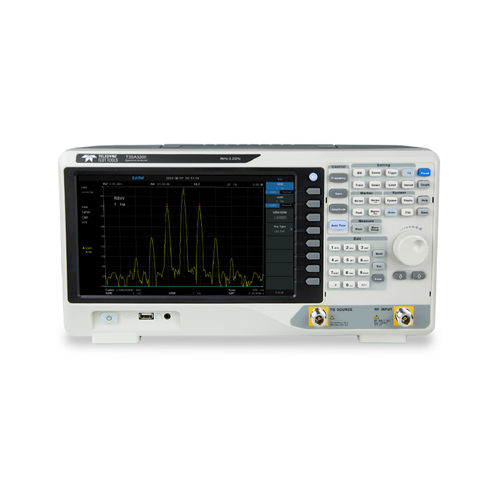

spectrum analyzer / for electrical networks / benchtop / digital spectrum analyzer / for electrical networks / benchtop / digital - T3SA series
{{requestButtons}}

Characteristics

  • Measured entity:

    for electrical networks

  • Measured value:

    spectrum

  • Configuration:

    benchtop

  • Other characteristics:

    automatic, digital, with touchscreen

Description

Teledyne Test Tools new T3SA3000 family of Spectrum Analyzers offers a frequency range of 9 KHz to either 2.1/3.2 GHz alongside many impressive features. With their light weight, small form factor, and user friendly interface, these Spectrum Analyzers take powerful and reliable automatic measurements that are presented on a large, bright, easy to read touch screen display. Typical uses for the T3SA3000 series are research and development, education, production, maintenance, and pre-compliance testing.

Key Features

•All Digital IF technology
•10.1” WVGA (1024 x 600) Display
•Frequency range from 9 KHz up to 3.2 GHz
•-161 dBm/Hz Displayed Average Noise Level (Typ)
•-98 dBc/Hz @ 10 khz Offset Phase Noise (Typ)
•Total Amplitude Accuracy < 0.7 dB
•1 Hz Minimum Resolution Bandwidth (RBW)
•Comes with standard Preamplifier and Tracking Generator Kits.
•Optional Reflection/VSWR, Advanced Measurement Kit and EMI Pre-compliance measurement kits.
