Digital power meter T3PM series

benchtopsingle-phaseUSB

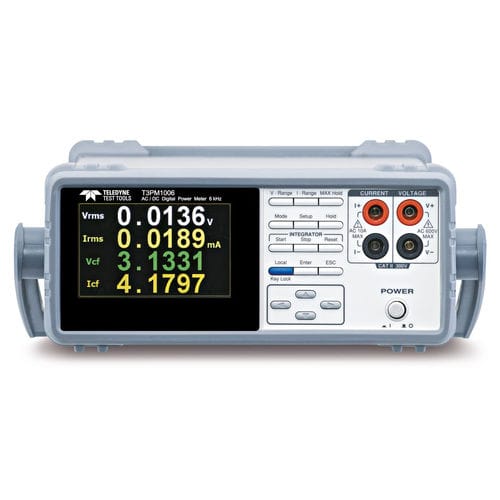

Teledyne Test Tools range of digital power meters are for single-phase (1P/2W) AC power measurements with a test Bandwidth ranging from DC, 0.1 Hz to 100 kHz. The T3PM1006 model features a 4” TFT LCD screen with a five-digit measurement display. It offers 19 power measurement parameters to choose from, integration measurement function, front/rear panel input terminals, and various communication interfaces to help users to make convenient and accurate power measurement. The T3PM1100 model offers DC, 0.1 Hz ~ 100 kHz test bandwidth, 16 bits ADC, and 300 kHz sampling rate. It features a 5” TFT LCD screen with a five-digit measurement display. It also has options to display waveform (voltage/current/power), the integration measurement function, harmonic measurement and analysis of each order (meeting the IEC 61000-4-7 harmonics measurement requirements at 50/60 Hz), external sensor input terminals, and various communication interfaces to help users to make convenient and accurate power measurements. • Large Color LCD Display • Two numerical display modes along with a waveform display of various parameters. • Standard interfaces: USB, LAN, RS-232C. • Automatic Level-changing feature for integration function (T3PM1100 model) • External Current Sensor Input Terminal (T3PM1100 model) • Meets the Requirement for IEC 62301 Power Measurement (T3PM1006) or the IEC 61000-4-7 harmonics measurement requirements (T3PM1100).
