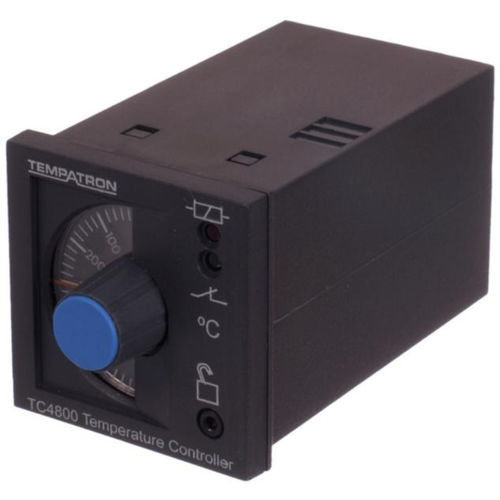

Dial temperature controller TC4800

standardIP40process

The Tempatron TC4800 series temperature controllers are available in On/Off, PD (proportional and derivative) and latching versions, and are designed for simple control of temperature or processes in a wide range of industrial applications. The controllers operate from a range of thermocouple or 3 wire PT100 (RTD) input sensors or from a 4-20mA process signal. The temperature controllers are housed in a compact DIN48 square enclosure which can either panel mount or surface/DIN rail mount to a socket and they are auxiliary powered from either 24Vac/dc or 110/230Vac. The 5 Amp rated single pole changeover relay output contact is isolated from the supply voltage, and the temperature controllers have two LEDs to indicate both power and relay status. Product Features On/Off, PD or latching control action Reverse or direct action Relay or SSR output J, K, T or R type thermocouple inputs PT100 or 4-20mA inputs 24Vac/dc or 110/230Vac Deviation LEDs and meter output Standard DIN48 square size Plug-in socket or panel mounting Lockable dial to prevent tampering
