Digital converter module CONV0/10A0temperaturesignal4-20 mA
Add to favorites
Compare this product
Characteristics
- Type
- signal, digital, temperature
- Bus
- 4-20 mA
- Other characteristics
- compact, DIN rail, 4-20 mA
Description

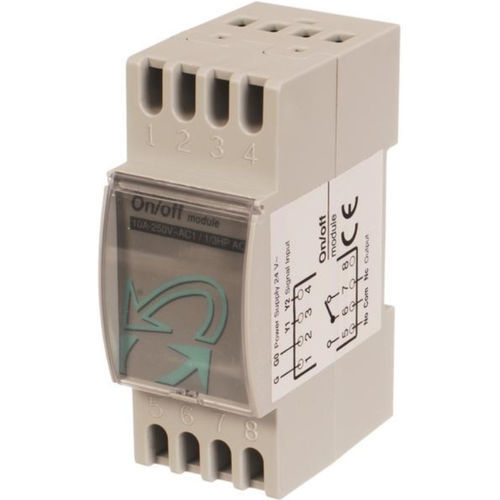

The Tempatron output conversion modules are designed to be connected to the SSR output from a digital temperature or process controller. The CONV0/10A0 module converts the 10Vdc PWM (pulse width modulated) signal into an analogue 4-20mA or 0-10Vdc output whilst the CONVONOFF0 module converts the 10Vdc PWM signal into an on/off relay output. These conversion modules are housed in a compact DIN rail mounting enclosure and are powered from 24Vac.
Product Features
Converts a SSR control signal
0-10Vdc or 4-20mA output
On/Off relay output
24Vac auxiliary powered
IP20 enclosure code
DIN rail mounting
Catalogs
Product Catalogue
124 Pages
Output Conversion Modules
2 Pages
