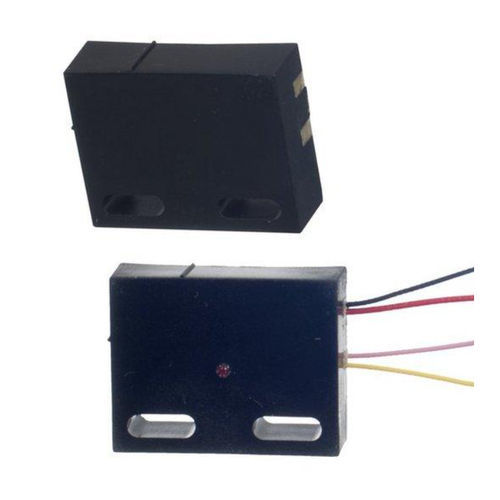

Magnetic proximity sensor SMX1-D rectangularPNPNPN
Add to favorites
Compare this product
Characteristics
- Technology
- magnetic
- Shape
- rectangular
- Output signal
- PNP, NPN
- Supply voltage
- 24VDC
- Material
- PTFE
- Protection level
- IP65
- Length
32 mm
(1.26 in)- Width
25 mm
(0.98 in)- Measuring range
15 mm
(0.59 in)- Process temperature
Min.: -10 °C
(14 °F)Max.: 70 °C
(158 °F)
Description
The Tempatron Solid State Magnetic Proximity Switches and Actuator Magnets are designed to be an ideal replacement for magnetic reed switches. The switches use the latest fully encapsulated surface mount technology to provide stable 'bounce free' direct switching. The NPN sink and PNP source outputs can switch up to 250mA to relays, programmable logic controllers, TTL, CMOS and microprocessor systems. The magnetic proximity switch and actuator magnet can be mounted up to 15mm apart and both are sealed to IP65, making them ideal for operation in harsh environments. The sensors are powered from 7.5 to 24Vdc and have an LED to indicate output status.
Product Features
Alternative to magnetic reed switches
Solid state technology
NPN sink and PNP source outputs
250mA rated outputs
Catalogs
Magnetic Proximity Switches
2 Pages
