Humidity sensor controller MINISENSOR4-MCU series

flowpressuretemperature

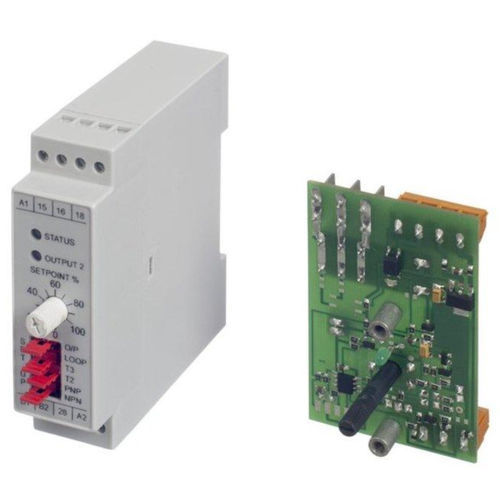

The Tempatron MINISENSOR4-MCU analogue controllers are twin setpoint, dual output units for 4-20mA or 0-10Vdc input signals from temperature, pressure, humidity, flow, velocity or position sensors. Alternatively, two open collector or voltage free contact switch sensors can also be used. They combine analogue potentiometer setting simplicity with microprocessor based, digital timing software and have 7 different output modes (which can be selected via jumper links) including a fully, user programmable option. They are available to DIN rail mount or in a chassis mounting pcb version that measures only 70mm x 45mm. Both models are 12-24Vdc powered and have a 16 Amp changeover relay output which is isolated from the supply voltage, an optocoupler output (which can also be used as a PWM output to drive an analogue or digital panel meter) and an LED to indicate the input value or control status. Product Features DIN rail mounting PCB model ideal for OEM applications 4-20mA or 0-10Vdc input MYTIME programming feature SMARTCYCLE sequencing control 16 Amp changeover relay output 12 to 24Vdc powered LOCKPOT operation feature LED to indicate value or control status Optional remote LED (pcb model only) Dual optocoupler output upon request
