Forced circulation evaporator TC-MES-DDGS

vacuumfalling filmprocess

Product Details

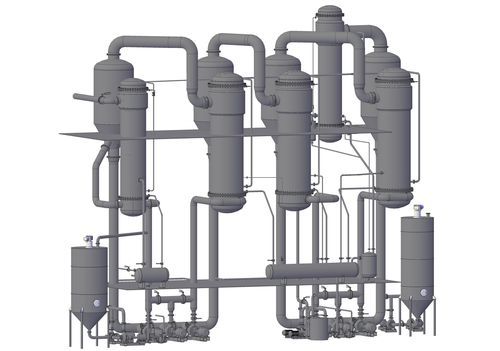

Multi-effect system TC-MES-DDGS
Designed for concentrate stillage (fermented liquid after the distillation process) in order to increase the dry solids content before drying in the production of DDGS at bioethanol plants.

Structural features

• Optimization of the evaporation process through the use of a four-body evaporator (EV) operating under vacuum with sequential utilization of secondary steam
• Use of falling-film and forced-circulation type evaporators for uniform product heating
• Possibility of integrating a steam-jet compressor to enhance energy efficiency
• Efficient system for removal of non-condensable gases and condensate from steam chambers
• Modular design that simplifies transportation, installation, and maintenance
• Complete thermal insulation of bodies to minimize energy losses

Quality

• Stable product concentration at the outlet (35–40% dry solids) ensured by precise control of temperature and hydraulic regimes
• Preservation of protein nutritional properties due to operation at reduced temperatures
• Uniform evaporation without scale formation or product overheating

Economy

• Low steam consumption — 0.25–0.3 t of heating steam per 1 t of evaporated water from the EV bodies
• Possibility of utilizing heat from the dryer
• Reduction of energy consumption and operating costs compared to traditional systems
• Decreased load on drying equipment due to pre-concentration of stillage

Reliability

• Main components made of stainless steel AISI 304/316 resistant to corrosion and organic acids
• High operational reliability during long production cycles without cleaning
• Absence of stagnant zones in heat exchange sections
• Easy maintenance access through inspection windows and manholes

Automation

• Fully automated process control — monitoring of temperature, level, pressure, and dry solids concentration
• Instant response system to parameter changes ensuring stable product quality
• Integration with the plant’s central process control system (PCS)
• Remote monitoring capability and storage of technological data archives

Specifications
Name | TC-MES-DDGS
Capacity (stillage), t/h | 10 – 70
Final dry solids content, % | 35 – 40
Specific steam consumption, t/t of evaporated water | 0.25 – 0.3
Operating vacuum, bar | 0.25 – 0.4
Material – stainless steel | AISI 304/316

Characteristics / Technical Specifications

• Product: Multi-effect system TC-MES-DDGS
• Application: Concentration of stillage for DDGS production at bioethanol plants
• Evaporation type: Four-body, falling-film and forced-circulation
• Capacity: 10–70 t/h (stillage)
• Final dry solids: 35–40%
• Specific steam consumption: 0.25–0.3 t/t evaporated water
• Operating vacuum: 0.25–0.4 bar
• Material: Stainless steel AISI 304/316
• Automation: Full process control, remote monitoring, PCS integration
