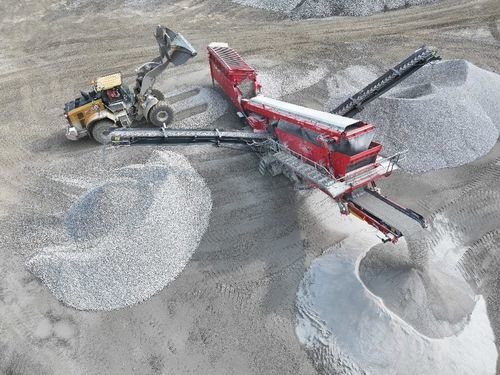

Overview The 693+ tracked inclined screen is designed for high-production quarrying, mining, sand & gravel, coal, woodchip and topsoil applications. It features a high-energy double-deck screenbox (top deck 6.1 m x 1.53 m, bottom deck 5.55 m x 1.53 m), a large hopper with variable-speed belt feeder and the option of hybrid power. The hydraulic system and powerpack are configured for fuel-efficient operation at reduced engine speeds without compromising performance.

Key features

• Simplified, reconfigured folding mechanism for onboard product conveyors for quick deployment and user-friendly operation.
• Extra-wide folding catwalks for safe, rapid access and reduced maintenance time.
• Maximum utilisation of full-size double decks for high-capacity screening of fine, sticky and dirty materials.
• Hydraulically adjustable screenbox angle (20°–30°) for process flexibility.
• T-Link telematics hardware and software fitted as standard for remote monitoring and reporting.

Additional product details Engineered for continuous high-throughput operation, the 693+ has conveyors and stockpile capacity sized for heavy-duty use. The robust undercarriage and hydraulically adjustable screen angle permit operation in demanding site conditions, while simplified folding arrangements and wide access reduce setup and service time.

Technical specifications

• Net engine power: Tier 3/Stage IIIA - CAT C4.4 83 kW | Tier 4F/Stage V - Cat C3.6 82 kW (111 hp / 110 hp)
• Screen: Top deck 6.1 m x 1.53 m | Bottom deck 5.55 m x 1.53 m
• Weight (approx): 34,700 kg
• Transport dimensions (L x W x H): 18.95 m x 3.15 m x 3.6 m
• Working dimensions (L x W x H): 19.17 m x 18.25 m x 6.72 m
• Screenbox: Angle 20°–30° hydraulic; stroke 7 mm; speed ~1,050 rpm; total screening area ~18 m²
• Hopper / feeder: Capacity 6.9 m³; feed height 2.65 m (no grid); feed-in width 4.1 m; beltfeeder width 1.2 m; feeder speed 0–16 m/min
• Main conveyor: Belt width 1,050 mm; belt speed ~92 m/min
• Fines conveyor: Belt width 1,200 mm; discharge height ~4.41 m; stockpile capacity ~127.5 m³
• Middle/oversize conveyors: Typical belt width 800 mm; discharge height ~4.97 m; stockpile capacity ~183 m³
• Undercarriage: Shoe width 500 mm; travel speed ~0.8 km/h; gradeability 32.6°
