Vibrating screener 696

coalinclinedcompact

Overview

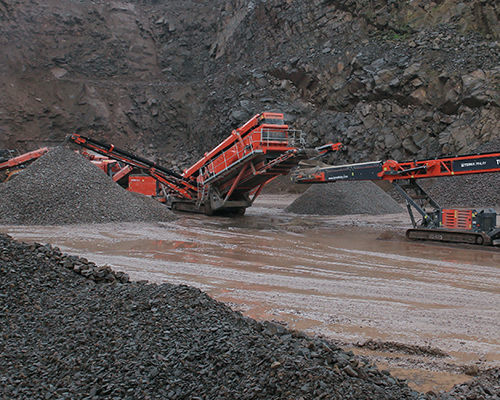

The 696 2-Deck inclined screen is designed for quarrying, mining and aggregate applications. It features two full-size 6.1 m x 1.7 m decks to provide a large screening area. The 8 m³ hopper with a variable-speed belt feeder ensures consistent feed and can accept a remote tipping grid or a double-deck vibrating grid. Hydraulically folding screenbox catwalks and product conveyors enable fast site set-up (typically under 30 minutes) and compact transport dimensions for easy relocation between sites.

Key features

• Two full-size screening decks (6.1 m x 1.7 m) for increased screening area.
• Hydraulically adjustable screenbox angle: 18°–32°.
• Hydraulically folding catwalks and onboard conveyors for rapid deployment and transport.
• Variable-speed belt feeder (0–16 mpm) to maintain consistent material flow.
• T-Link telematics fitted as standard with a complimentary seven-year data subscription.

Operator benefits
Reduced set-up time due to hydraulic folding systems; compact transport envelope for easier site moves; optional hybrid powerpack allows operation from external electrical supply or on-board engine.

Hopper / Feeder

• Hopper capacity: 8 m³ (10.5 yd³).
• Feed height: 2.5 m (8' approx.).
• Feed width (with grid wings): 4.2 m (13'9" approx.).
• Belt feeder width: 1.2 m (48").
• Belt feeder speed: variable 0–16 mpm (0–53 ft/min).

Screenbox

• Two full-size decks: 6.1 m x 1.7 m (20' x 5'7").
• Total screening area (two-deck configuration): 20.74 m² (223 ft²).
• Hydraulically adjustable angle: 18°–32°.
• Hydraulically folding catwalks for safe and rapid deployment.

Conveyors (selected)

• Oversize conveyor: belt width 800 mm (32"), speed variable 0–90 mpm, discharge height ~5.1 m, stockpile capacity ~228 m³.
• Main conveyor: belt width 1.2 m (48"), belt speed ~92 mpm, full-length steel skirted conveyor.
• Middle-grade conveyor: belt width 800 mm (32"), working angle ~22°, speed variable 0–90 mpm, discharge height up to ~5.1 m.
• Fines conveyor: belt width 1.2 m (48"), variable speed up to 125 mpm, standard discharge height 5.5 m, stockpile capacity ~285 m³.

Undercarriage and mobility

• Shoe width: 500 mm (20").
• Gradeability: up to 32.6°.
• Raking angle: 9°.

T-Link telematics
T-Link telematics hardware and software are fitted as standard to provide remote monitoring, location and performance reporting. A complimentary seven-year data subscription is included to support machine availability and remote diagnostics.

Accessories / options

• Optional hybrid powerpack (on-board electric motors) to allow electric operation from external supply or on-board engine.
• Remote tipping grid or double-deck vibrating grid options for the hopper.

Technical specifications

• Model: 696 2-Deck.
• Deck size: 6.1 m x 1.7 m per deck; total screening area 20.74 m².
• Hopper capacity: 8 m³ (10.5 yd³).
• Indicative weight: 33,800 kg (74,550 lbs).
• Transport dimensions (indicative): H 3.65 m · W 3.0 m · L 19.7 m.
• Working dimensions (indicative): H 5.8 m · W 18.1 m · L 21.01 m.
• Conveyor belt widths: main 1.2 m (48"), oversize/middle 800 mm (32"), fines 1.2 m (48").
• Screen angle range: hydraulic 18°–32°.
• Telematics: T-Link fitted with complimentary seven-year data subscription.
