Product overview

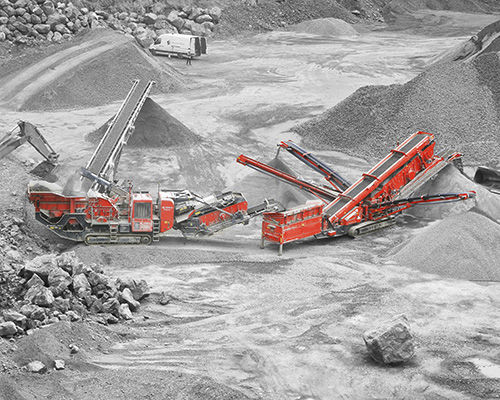

The Terex Finlay 696 3-deck inclined screen is engineered for high-production screening in quarrying, mining, sand & gravel, coal, wood-chip and topsoil applications. The machine features a high-energy screenbox with three full-size decks and a compact transport envelope for easy site-to-site movement.

Key features

• High-energy three-deck screenbox with three full-size 6.1 m x 1.7 m decks providing a total screening area of 31.1 m² (335 ft²).
• Large 8 m³ hopper and variable-speed belt feeder for consistent material flow; options include remote tipping grid or double-deck vibrating grid.
• Oversize-plus conveyor with hydraulic variable tilt and slew for recirculation to secondary crusher or stockpiling.
• Compact transport dimensions for straightforward movement between jobsites.
• Optional hybrid powerpack allowing operation from external supply or on-board engine.
• Intuitive folding mechanism for onboard product conveyors to aid deployment and onsite movement.
• Hydraulically folding catwalks as standard for improved onsite efficiency and rapid screenbox deployment.
• Hydraulic system designed to balance power and efficiency.
• Hydraulically adjustable screenbox angle between 18° and 32°.
• T-Link telematics fitted as standard with a seven-year data subscription included.

Hopper / Feeder

• Hopper capacity: 8 m³ (10.5 yd³)
• Feed height (no grid): 2.5 m
• Feed in width (with grid wing plates): 4.2 m
• Belt feeder width: 1.2 m
• Feeder speed: variable, 0–16 m/min

Main conveyor

• Belt width: 1.2 m
• Belt speed: 92 m/min
• Steel skirted full length of conveyor

Middle grade conveyor

• Belt width: 800 mm
• Working angle: 22°
• Speed: variable, 0–90 m/min
• Discharge height: 5.1 m
• Stockpile capacity: 228 m³

Oversize conveyor

• Belt width: 800 mm
• Working angle: 22°
• Speed: variable, 0–90 m/min
• Discharge height: 5.1 m
• Stockpile capacity: 228 m³

Oversize plus conveyor

• Belt width: 500 mm
• Working angle: variable up to 24°
• Speed: variable, up to 120 m/min
• Variable discharge height up to 5.4 m
• Stockpile capacity: 270 m³ @ 40°

Fines conveyor

• Belt width: 1.2 m
• Working angle: variable up to 27.5° (max)
• Speed: variable, max 125 m/min
• Standard discharge height: 5.5 m
• Stockpile capacity: 285 m³

Screen box

• All decks: 6.1 m x 1.7 m — three full-size decks
• Hydraulic folding catwalks as standard
• Hydraulically adjustable screen angle: 18°–32°
• Total screening area: 31.1 m²

Undercarriage

• Shoe width: 500 mm
• Gradeability: 32.6°
• Raking angle: 9°

T-Link Telematics
T-Link telematics is fitted as standard enabling remote monitoring of machine location and status and providing data to optimise availability and remote plant performance. Activation and account setup are provided via the manufacturer's telematics service.

Technical specifications

• Net engine power: engine options per specification (refer to technical sheet)
• Screen size (each deck): 6.1 m x 1.7 m
• Total screening area: 31.1 m²
• Machine weight: approx. 40,050 kg
• Transport dimensions (H x W x L): approx. 3.65 m x 3.0 m x 19.7 m
• Working dimensions (H x W x L): approx. 5.8 m x 18.45 m x 21.01 m
• Hopper capacity: 8 m³
