Definition

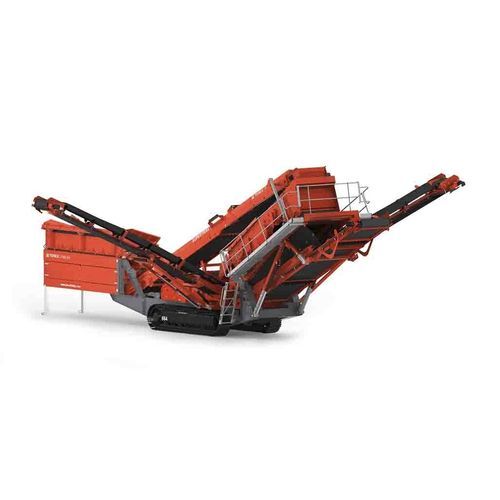

The Finlay® 684 2-Deck is a compact, transportable inclined screen designed for aggregate screening. It features two large inclined decks (2 x 4.3 m x 1.7 m) delivering a total screening area of approximately 14.6 m². The top deck uses quick wedge tensioning and the bottom deck has hydraulic tensioning to minimise mesh change time.

Key features

• Two inclined screening decks 4.3 m x 1.7 m each for high-capacity screening.
• Quick wedge tensioning on the upper deck, access holes and hydraulic tensioning on the lower deck for reduced downtime.
• Three adjustable discharge conveyors with hydraulic folding for transport.

Conveyors & components

• Main conveyor: belt width approx. 1.0 m (40") with full-length steel skirt and anti-rollback plates.
• Fines conveyor: belt width approx. 1.2 m (48"); working angle variable up to 25°; standard discharge height ~4.15 m; stockpile capacity ~106.3 m³ @ 25°.
• Oversize / mid-grade conveyors: typical belt width 650 mm (26"); Chevron 2-ply EP250 belt; hydraulically folding; discharge heights and stockpile capacities depend on configuration.

Hopper / feeder

• Hopper capacity: ~8 m³ (10.5 yd³).
• Feed height: ~3.45 m (11'4").
• Feed-in width: ~4.77 m (with grid wing plates).

Screenbox

• Two decks: 4.3 m x 1.7 m each — total screening area ~14.6 m² (156 ft²).
• Screen angle: adjustable approximately 18°–37° (hydraulic adjustment available).
• Impact plates in feed zone made from abrasion-resistant material.
• Access catwalks on both sides and at the upper end for inspection and maintenance.

Telematics
T-Link telematics hardware and software are fitted as standard, including a factory data subscription period (example: 7 years) depending on specification.

Maintenance & transport

• Quick wedge tensioning on upper deck and hydraulic tensioning on lower deck to minimise mesh change time.
• Hydraulically foldable conveyors and designated lifting/transport points for road transport.

Technical specifications

• Model: 684 2-Deck.
• Screen decks: 2 x 4.3 m x 1.7 m.
• Total screening area: ~14.6 m² (156 ft²).
• Hopper capacity: ~8 m³ (10.5 yd³).
• Main conveyor width: ~1.0 m (40"); fines conveyor width: ~1.2 m (48"); oversize/mid-grade typical width: 650 mm (26").
• Screen angle: ~18°–37° (hydraulic adjustment possible).
• Transport weight (indicative): 28,750 kg / 63,380 lbs; transport and working dimensions as per product specification.
• Standard/optional equipment: T-Link telematics, dust suppression options, various screen media and conveyor configurations.
