Wet screening screener 693+ Spaleck

dry screeningfor recyclingwet

Overview

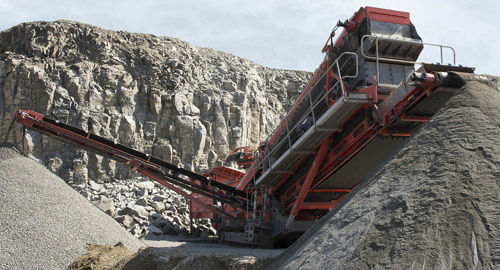

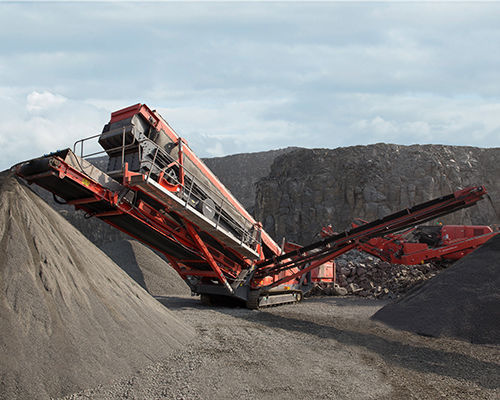

The Finlay® 693+ Spaleck is a tracked mobile fine screening and separation unit featuring a German-designed 2-deck high-performance screenbox with Flip-Flow technology on both decks. Its processing capability and application flexibility make it suitable for recycling and aggregate operations including incineration slag, shredder light and heavy fractions, scrap metal, e-scrap, compost, clay, quarry dust, lime, plastic fractions, biomass, topsoil, ore and aggregates.

Key features

• Operates effectively with wet, moist, sticky, dry, mixed recycling, virgin ore and aggregate materials.
• Dynamic wear‑resistant screening mats ensure efficient material flow.
• High acceleration of the screening mats delivers accurate screening and a self‑cleaning effect to prevent blinding.
• Flip‑Flow screen with boltless mounted mats reduces cleaning and maintenance time.

Plant highlights and components

• Hopper / feeder: Hopper capacity 8 m³; feed height 3.67 m; feed in width 4.77 m (with grid wing plates); feeder belt width 1.2 m.
• Main conveyor: Belt width 1.2 m; hydraulic adjustment; belt speed up to 92 m/min; steel skirted full length of conveyor.
• Screenbox: Two Flip‑Flow decks each 5.9 m x 1.53 m; screen angle 18°; galvanised access catwalks both sides and top end; total screening area 18.5 m².
• Fines conveyor: Belt width 1.2 m; working angle variable to 25°; speed up to 92 m/min; standard discharge height 4.86 m; stockpile capacity approx. 260 m³.
• Oversize / midgrade conveyors: Belt width 800 mm; belt spec Chevron EP400 3‑ply; working angle 24°; hydraulic folding.
• T‑Link Telematics: Telematics hardware and software fitted as standard on applicable configurations for remote machine visibility and reporting.

Characteristics / Technical specifications

• Net engine power: Tier 3 - Cat 121 hp | Tier 4F / Stage IV - Cat 110 hp (approx. 90–97 kW depending on configuration).
• Screen: 20' x 5' / 5.9 m x 1.53 m (per deck); total screening area 18.5 m².
• Weight: 34,850 kg (76,831 lbs).
• Transport dimensions: Height 3.58 m | Width 3.00 m | Length 19.36 m.
• Working dimensions: Height 7.04 m | Width 17.87 m | Length 19.6 m.
