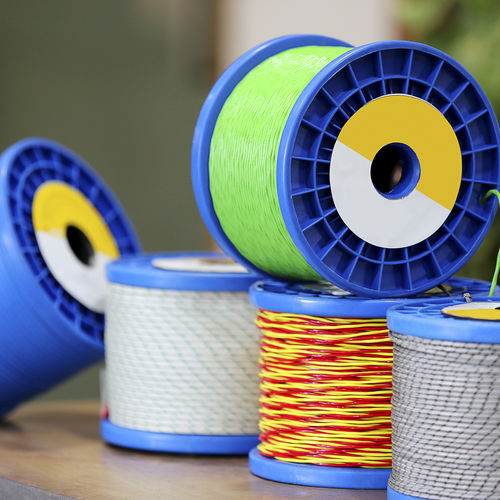

Thermocouple electrical cable
compensationextensionheat-resistant

thermocouple electrical cable
thermocouple electrical cable
thermocouple electrical cable
thermocouple electrical cable
thermocouple electrical cable
thermocouple electrical cable
thermocouple electrical cable
Add to favorites
Compare this product


Characteristics

Type
extension, compensation
Protection
high-temperature, heat-resistant
Configuration
stranded, twisted pair, flat
Core material
copper
Number of wire
solid
Material of the insulation
PVC-sheathed, metal-sheathed, mineral-insulated, Mylar-shielded, fiberglass-sheathed, nylon-sheathed
Other characteristics
for thermocouples
Temperature

Max.: 1,200 °C
(2,192 °F)

Min.: 105 °C
(221 °F)

Description

Wires with conductors for all types of thermocouple (also, extension and compensation) and silver copper conductors for RTDs. Conductors can be solid or stranded, flat or twisted (for avoid interferences), with optional internal copper brains or aluminum Mylar shield and external stainless steel or Inconel brains. Special wires with stainless steel shields for applications where more strength is needed. Multiwire cable with pairs from 2 to 50, numbered with individual or group shields. High temperature extension wire with metallic sheath and mineral insulation for platinum and tungsten thermocouples. • Conductor diameter: from 0.13 to 1.6 mm. • Insulation: PVC (105 ᵒC), Nylon (150 ᵒC), Teflon (260 ᵒC), Kapton (320 ᵒC),fiber glass (480 ᵒC), high temperature fiber glass (705 ᵒC), silica fiber (980 ᵒC), ceramic fiber (1.200 ᵒC).
