- TERMYA MEDIDA Y CONTROL
Thermocouple RTD2-wire4-wire
Add to favorites
Compare this product
Characteristics
- Technology
- thermocouple, RTD
- Output
- 2-wire, 4-wire, 3-wire
- Applications
- process, for the food industry, for the pharmaceutical industry
- Other characteristics
- encapsulated
- Temperature
Max.: 600 °C
(1,112 °F)Min.: 0 °C
(32 °F)
Description

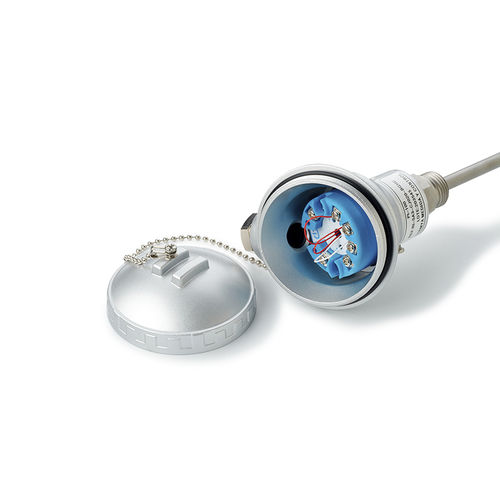

2, 3 or 4-wire sensors with connection head (DIN B, DIN C, NEMA 4, with or without transmitter). Simplex or duplex measurement element encapsulated in glass or ceramic.
Process connection: welded or adjustable fittings (GAS, NPT, BSP, etc.). Flanges or hygienic threads for food or pharmaceutical industries.
• Sheath diameter: from 3 to 12 mm
• Tolerance: class B, A, 1/3, 1/5 and 1/10
• Sheath material: stainless steel (ANSI 304 or 316)
• Maximum temperature: 300 or 600 ºC, according to design.
Catalogs
No catalogs are available for this product.
