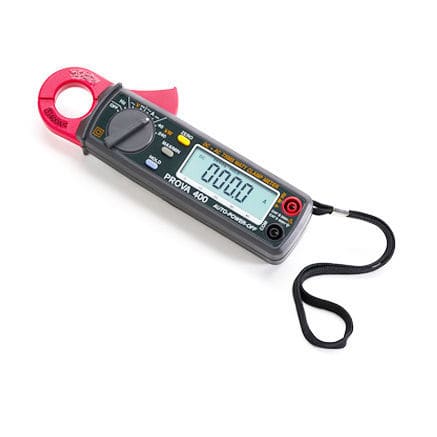

Clamp multimeter with power measurement PROVA-400digitalportable600 V
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Max voltage
- 600 V
- Max current
- 400 A
- Additional features
- frequency, with power measurement
- Applications
- for cables
- Other characteristics
- AC/DC, true RMS
- Max DC voltage
400 V
- Max AC voltage
600 V
- Max DC current
400 A
- Max AC current
400 A
- Max frequency measure
100 kHz
- Max DC voltage resolution
0.1 V
- Max AC voltage resolution
1 V
- Max DC current resolution
100 mA
- Max AC current resolution
100 mA
- DC voltage precision
1 %
- AC voltage precision
1.5 %
- DC current precision
1.5 %
- AC current precision
1.5 %
- Process temperature
Max.: 50 °C
(122 °F)Min.: -10 °C
(14 °F)- Length
183 mm
(7.2 in)- Width
61.3 mm
(2.41 in)- Height
35.6 mm
(1.4 in)- Weight
190 g
(6.7 oz)
Description
AC+DC power measurement: 0 ~ 240KW
AC current: 0 ~ 400A (True RMS)
DC current: 0 ~ 400A
AC voltage: 0 ~ 600V (True RMS)
DC voltage: 0 ~ 400V
Frequency measurement (Auto range): 1 ~ 100K Hz
One touch zero for DCA adjustment
Large 3 3/4 digits LCD
Jaw diameter: 23mm
Fast bargraph display (30 times/sec.) for transient observation
Max/Min and Data Hold functions
Auto power off
Easy single rotary switch for any function selection
Ideal for works in crowded switch box or cable areas
