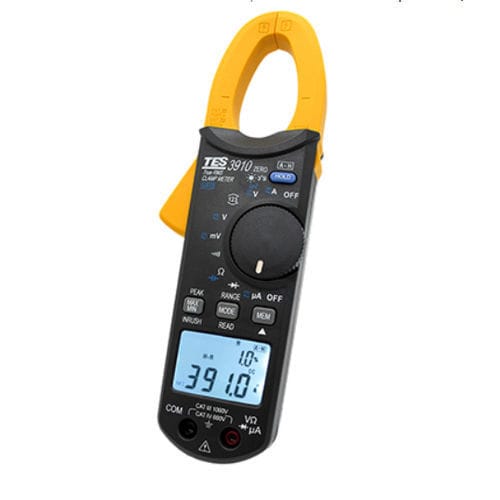

True RMS clamp multimeter TES-3910digitalportable1000 V
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Max voltage
- 1000 V
- Max current
- 1000 A
- Safety rating
- cat III, cat IV
- Additional features
- frequency, harmonic
- Applications
- for HVAC
- Other characteristics
- AC/DC, true RMS
- Max DC voltage
999.9 V
- Max AC voltage
999.9 V
- Max DC current
999.9 A
- Max AC current
999.9 A
- Max resistance measure
1,000 kOhm
- Max capacity measure
1,000 µF
- Max frequency measure
1 kHz
- Max DC voltage resolution
100 mV
- Max AC voltage resolution
100 mV
- Max DC current resolution
100 mA
- Max AC current resolution
100 mA
- Max resistance resolution
100 Ohm
- DC voltage precision
1 %
- AC voltage precision
1 %, 2 %
- AC current precision
2 %, 4 %
- Resistance precision
1 %
- Length
236 mm
(9.29 in)- Width
80 mm
(3.15 in)- Height
39 mm
(1.54 in)- Weight
332 g
(11.71 oz)
Description
Capacitance measurement 1000µF
Variable-frequency drive (VFD) V & Hz measurement.
Lo-Z voltage measurement to drain ghost voltages.
Check 3Φ phase sequence.
True RMS reading on AC and DC+AC mode.
Inrush current measurement.
A measurement for HVAC flame sensors.
mV measurement range to interface with other accessories.
Crest Factor & Harmonic ratio measurement.
Data hold, Auto hold & Peak hold mode.
Max/Min/Avg record mode.
Data memory & read function.
