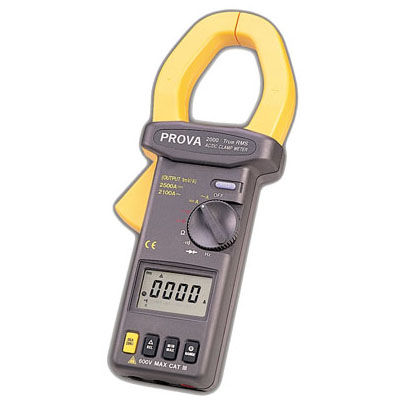

Digital clamp multimeter PROVA-200 series
portable600 V2500 A

Digital clamp multimeter - PROVA-200 series - TES Electrical Electronic Corp. - portable / 600 V / 2500 A
Digital clamp multimeter - PROVA-200 series - TES Electrical Electronic Corp. - portable / 600 V / 2500 A
Add to favorites
Compare this product
Go to the TES Electrical Electronic Corp. website for more information

Characteristics

Display
digital
Form
portable
Max voltage
600 V
Max current
2500 A
Safety rating
cat III
Additional features
frequency, with data logger
Other characteristics
AC/DC, true RMS, autorange
Max DC voltage

600 V

Max AC voltage

600 V

Max DC current

2,500 A

Max AC current

2,100 A

Max resistance measure

40,000 kOhm

Max frequency measure

400 kHz

Max DC voltage resolution

1 V

Max AC voltage resolution

1 V

Max DC current resolution

1 A

Max AC current resolution

1 A

Max resistance resolution

10 kOhm

DC voltage precision

1.5 %

AC voltage precision

1.5 %, 2 %

DC current precision

1.5 %, 2 %

AC current precision

1.5 %, 2 %, 2.5 %, 3 %

Resistance precision

1 %, 1.5 %

Process temperature

Max.: 50 °C
(122 °F)

Min.: 4 °C
(39.2 °F)

Length

271 mm
(10.67 in)

Width

112 mm
(4.41 in)

Height

46 mm
(1.81 in)

Weight

647 g
(22.82 oz)

Description

Accurate DC/AC digital clamp meter for current measurement DC 2500A, AC 2100A (Average sensing for PROVA 2003, True RMS for PROVA 2000) DC/AC 600V Analog output for datalogger or oscilloscope 55 mm diameter jaw One touch zero for DCA adjustment Auto-range for A, V, , Hz Large 3 3/4 digits LCD Fast bargraph display (30 times/sec.) for transient observation Frequency, Resistance measurement Continuity with buzzer Diode Test Max/Min and Data Hold functions Auto-power-off function 600V overload protection for ohm measurement Easy single rotary switch for any function selection
