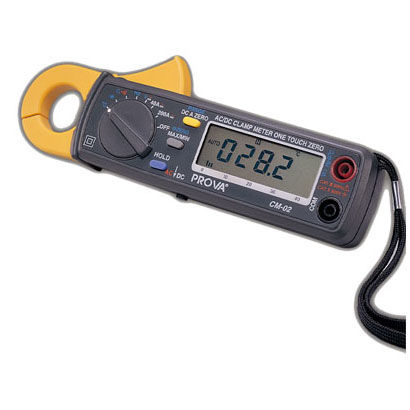

Digital clamp multimeter CM-02portable600 Vfrequency
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Max voltage
- 600 V
- Additional features
- frequency, with thermometer
- Applications
- for cables, for automotive applications
- Other characteristics
- AC/DC, high-resolution
- Max DC voltage
600 V
- Max AC voltage
600 V
- Max DC current
200 A
- Max AC current
200 A
- Max resistance measure
40,000 kOhm
- Max capacity measure
400 µF
- Max frequency measure
100 kHz
- Max DC voltage resolution
1 V
- Max AC voltage resolution
1 V
- Max DC current resolution
100 mA
- Max AC current resolution
100 mA
- Max resistance resolution
10 kOhm
- DC voltage precision
1.5 %
- AC voltage precision
1.5 %, 2 %
- DC current precision
1.5 %, 2.2 %
- AC current precision
1.5 %, 2 %
- Resistance precision
1.5 %
- Process temperature
Max.: 50 °C
(122 °F)Min.: -10 °C
(14 °F)- Length
183 mm
(7.2 in)- Width
63.6 mm
(2.5 in)- Height
35.6 mm
(1.4 in)- Weight
190 g
(6.7 oz)
Description
Temperature (℃ or ℉) and Capacitance
One touch zero for DCA adjustment
Auto-range for V, A, Ω, F, and temperature
23 mm diameter jaw
Auto-power-off (15 minutes)
Fast bargraph display (30 times/sec.) for transient observation
Continuity and frequency measurements
Max/Min and Data Hold functions
600V overload protection for ohm measurement
Ideal for works in crowded switch box or cable areas
