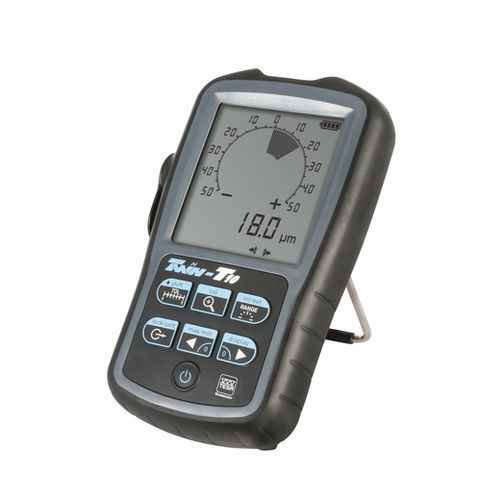

Large-format display TWIN-T10

portablehigh-contrastbattery-powered

- Retractable feet - Back mounting • USE - Light and portable - Robust for use in any kind of conditions, even the most extreme ones • AUTONOMY - Powered by standard AA batteries only, its low consumption allows a long autonomy • FUNCTIONS - Metric or imperial unit - Identification of values out of tolerance - Storage of MAX, MIN or MAX-MIN values during dynamic measurement - Combines analogue display and analogue indication - Zeroing of the display facilitating measurements by comparison - Special ZOOM display allowing a more detailed visualization of the analogue scale to facilitate precise adjustment - Up to 7 measuring ranges or automatic switching according to the measured value Units - mm / in Standard - DIN 32876 Max. perm. errors - At 20°C and relative humidity of ≤ 50 %: analogue display: 1% ± 0,1 µm Digital display: 1% ± 0,1 µm Material - Resistant synthetic material Dimensions - Housing: 100 x 170 x 38 mm Screen: 70 x 62 mm Digit: 10 x 5 mm Degree of protection - IP63 Particular characteristic(s) - At 20°C and relative humidity of ≤ 50 %: Zero drift and signal amplification: ≤ 0,005 %/° C Display frequency limit with respect to input signal: 10 Hz Weight - 500 g Included in delivery - TWIN-T10 display unit 4 AA batteries Instruction manual including declaration of conformity Data output(s) - TLC
