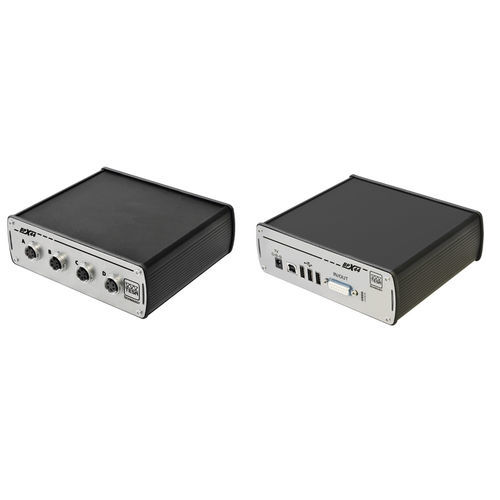

USB 2.0 interface BPX

electronicbox

• FUNCTIONS - Direct connection to the computer’s USB port - “Stand Alone” operating mode - Modularity: several BPXs can be connected together to increase the number of probes used - Increased immunity to negative environmental effects, whether of electrical origin or provoked by liquid and solid contaminants • SOFTWARE - TIS interface software is included in the BPX - Possibility of indicating tolerance values - Export of values to a .csv file Max. perm. errors - At 20°C and relative humidity of ≤ 50 % Digital output: ± (0,05 + 0,15 % of the measuring range) Material - Housing: aluminium Dimensions - 55 x 172 x 155 mm Degree of protection - IP40 Particular characteristic(s) - At 20°C and relative humidity of ≤ 50 %: Zero drift: ≤0,05 %/°C Sensitivity drift: ≤0,05 %/°C Acquisition time: 10 ms (between two consecutive measurements), 1 ms (timing window) Time data transfer of digital serial output (USB): depends on the operating system of the computer Weight - 1 kg Power supply - 115 ÷ 230 V, 50 ÷ 60 Hz
