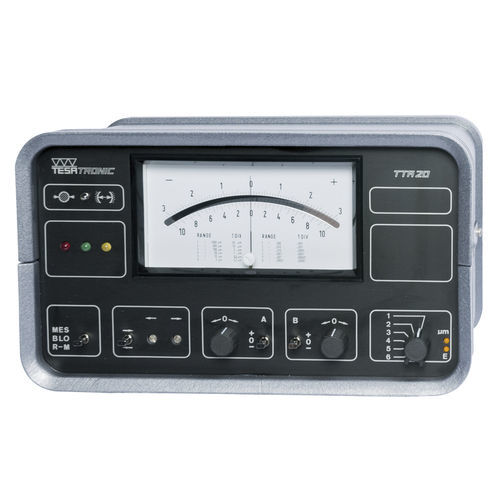

LED display TTA20

colorfor metrologycompact

- Compact analogue display unit with classification of measurement values • FUNCTIONS - Metric or imperial unit - Zero-setting - Tolerance setting - 6 measuring ranges - Polarity reverse switch for classification signals (internal or external dimensions) - Locking a displayed value - analogue output for a display unit or external recording - 1 auxiliary signal input, e.g. for all correction values. Units - mm / in Standard - DIN 32876 Max. perm. errors - At 20°C and relative humidity of ≤ 50 %: analogue display: 1,5% analogue output: 1 % of the scale +/- 0,1 µm Material - Housing: cast aluminium Dimensions - Housing: 258 x 190 x 158 mm Degree of protection - IP40 Particular characteristic(s) - At 20°C and relative humidity of ≤ 50 %: Zero drift = ≤ 0,005 % / °C No drift of stored values Frequency limit for analogue display: 1 Hz. Frequency limit for analogue output: 50 Hz. Frequency limit for classification: 30 Hz Weight - 3,4 kg Power supply - 110 ÷ 230 V, 50 ÷ 60 Hz Included in delivery - TTA20 display unit Power supply Power supply cable to choose (to be specified when ordering) Instruction manual including declaration of conformity Data output(s) - Sub-D 15p
