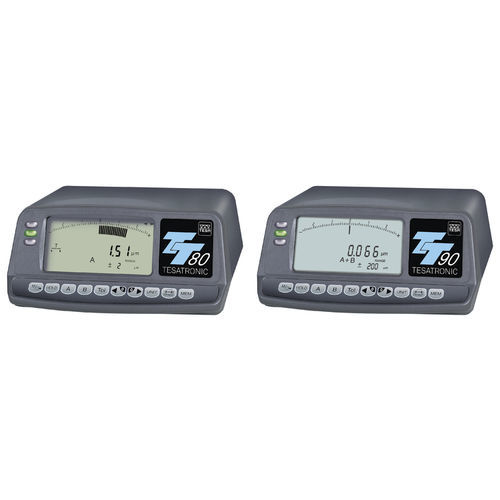

LED display TT series

colorfor metrologyRS-232

- Combines analogue display and analogue indication - Pointer or bargraph indication • FUNCTIONS - Classification of values and display through colour LEDs with signal outputs - Locking of displayed values for step by step measurement routines - Automatic recognition of the type of connected TESA probe with adaptation of the measurement signals to the value of output - 9 measuring ranges, switchable manually or automatically according to the measured value - Dynamic measurement - Storage in the memory of extreme values Min, Max, Max-Min and average (Max, Min) - Output signals through relay for 5, 10, 20 or 40 acceptable classes - analogue output for exterior processing of signals For TT90 - 6 measuring ranges, switchable manually or automatically according to the measured value - Output for bolt retraction control - Selection of stabilisation time for measuring cycle Units - mm / in Standard - DIN 32876 Max. perm. errors - At 20°C and relative humidity of ≤ 50 %: analogue display: 2 % Digital display: 0,15 % analogue output: 0,3 % Digital output: 0,15 % Material - Resistant synthetic material Dimensions - Housing: 255 x 235 x 120 mm Screen: 126 x 62 mm Digit: 12,5 x 6,6 mm Particular characteristic(s) - At 20°C and relative humidity of ≤ 50 % Zero drift and signal amplification: ≤ 0,005 %/° C Display frequency limit with respect to input signal: 10 Hz No drift of stored values Weight - 1,1 kg Power supply - 110 ÷ 240 V, 50 ÷ 60 Hz Included in delivery - TT80 or TT90 display unit Power supply + EU and US cables Instruction manual including declaration of conformity
