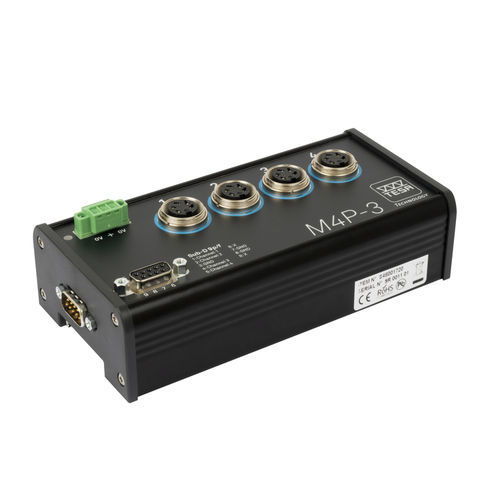

Connection interface M4P-3

electronicanalog

• USE - Connectable to a programmable controller - Easy and quick integration on DIN rail - Interfaces can be connected to each other (up to 10 interfaces) with a common power supply • FUNCTIONS - analogue signal output (in V/mm) - The interface converts the signal from the probe into a DC voltage via an electronic circuit optimised for fast measurements. - Gain of 1V/mm (standard) or 2,5, 5 or 10 V/mm (via adjustment) Max. perm. errors - ± 0,5 % of the measuring range Dimensions - 75 x 155 x 40 mm Degree of protection - IP40 Particular characteristic(s) - Gain: 1 V/mm (standard), 2,5 V/mm, 5 V/mm, 10 V/mm Weight - 400 g Data output(s) - Sub-D 9p/f
