Communication gateway STC65+ RS485 EVC

wirelessRS-485DIN rail

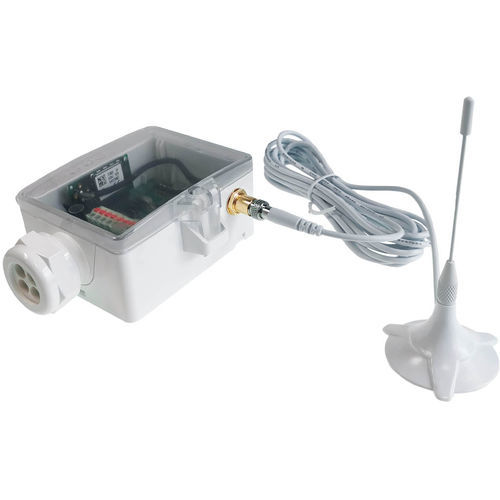

Bidirectional gateway with serial RS485 interface and IP65 enclosure for integrating up to 64 EasySens® sensors or wireless switches into a network. Transmission of field-programmable telegrams to max. 127 addresses. The gateway includes an ext. transmitting/receiving antenna (2.5 m). • Application/type : Gateway • Purpose : Gateway • Interface : EnOcean (868 MHz), RS485 EVC • Configuration : Software/Plug-In for configuration, BUS, jumper, DIP switches • Network technology : RS485 EVC • Radio technology : EnOcean (IEC 14543-3-10) 868 MHz, 902 MHz, transmission power <10 mW • Data transmission : bidirectional, SmartACK (SmartACKNOWLEDGE), transmitting/receiving channels, in filter mode 64 (Rx) + 128 (Tx), in gateway mode ∞ (Rx) + 128 (Tx), external antenna with magnetic base • Operating range temperature (°C) : -20..+60 • Operating ranges temperature (°C) : -20..+60 • Operating range humidity : max. 70% rH non-condensing • Power supply : 15..24 V = (±10%) SELV, 24 V ~ (±10%) SELV • Power consumption : typ. 0,8 W (24 V =), 2 VA (24 V ~) • Enclosure : USE-M, impact- and shock-resistant enclosure with quick-release cover, PC • Colour : pure white, transparent cover • Protection (IP) : IP65, according to EN 60529 • Connection : removable cable entry M25 with fourfold cable entry for wire with max. Ø=7 mm, plug-in terminal, max. 1,5 mm² • Mounting : prepared for mounting on DIN rail TS35 (35x7,5 mm) according to EN 60715 • Delivery content : incl. mounting base enclosure USE-M pure white, incl. mounting set (screws and accessories), incl. external receiving/transmitting antenna (2,5 m) with magnetic base
