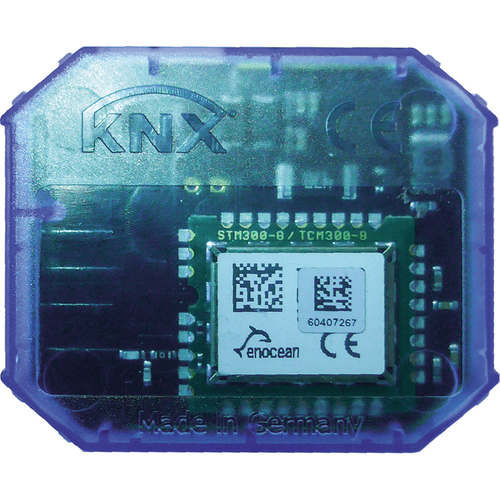

Communication gateway STC-KNX UP

wirelessfieldbusKNX

Flush-mounted bidirectional gateway for EasySens® sensors to integrate into a KNX network with a maximum of 8 channels. The STC-KNX UP offers logical control blocks, which can be configured for: switching and dimming lights, blinds up/down, presence, set point adjustment, fan stages, humidity sensor, window handle/contact, binary input, light and motion. • Application/type : Gateway • Purpose : Gateway • Interface : EnOcean (868 MHz), KNX (TP) • Configuration : BUS, ETS (KNX) • Network technology : KNX (TP1) • Radio technology : EnOcean (IEC 14543-3-10) 868 MHz, transmission power <10 mW • Data transmission : bidirectional, transmitting/receiving channels, 8 (Rx) + 8 (Tx), internal antenna • Operating range temperature (°C) : -5..+45 • Operating ranges temperature (°C) : -5..+45 • Operating range humidity : max. 85% rH non-condensing • Power supply : supply via BUS, 29 V = SELV • Power consumption : max. 12 mA • Enclosure : ABS • Colour : blue • Protection (IP) : IP20, according to EN 60529 • Connection : removable plug-in terminal, max. Ø=0,8 mm • Mounting : flush-mounted in standard EU box (Ø=60 mm) • Packaging length (mm) : 90 • Packaging width (mm) : 90 • Packaging height (mm) : 35 • Packaging : case packaging • Device length (mm) : 48 • Device width (mm) : 40 • Device height (mm) : 18
