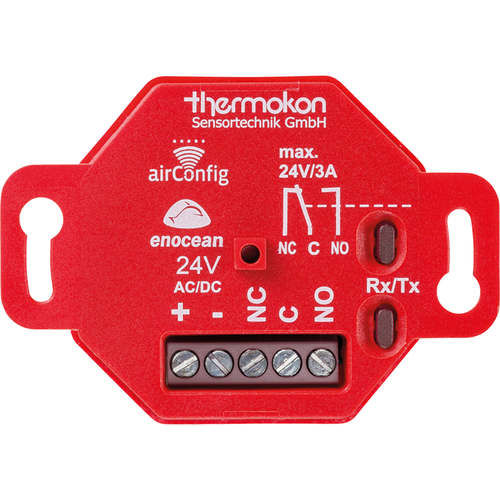

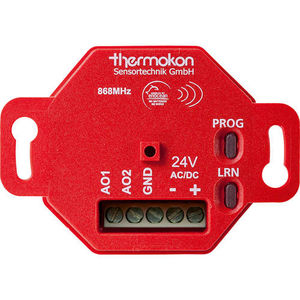

Actuator receiver STC-DO

radiodata transmissionwith integrated antenna

Bidirectional flush-mounted receiving actuator for EasySens® devices with one relay output. Functions/applications can be individually configured via airConfig software for e.g. heating with PWM, heating ON/OFF, signal contact, status feedback, hygrostat control, heating/cooling with PWM, light ON/OFF or fan speed control. The STC-DO is a universal relay acatuator that can be configured through airConfig depending on the application. • Application/type : Actuator • Purpose : Room Climate Control, Lighting control, Shading control • Interface : EnOcean (868 MHz) • Functions : heating relay, heating with PWM relay, heating ON/OFF, heating + cooling with PWM relay, light ON/OFF, fan enable relay, hygrostat control, signal contact • Configuration : airConfig, buttons • Output switch contact : changeover contact, floating, 3 A resisitve load, potential, load max. 10 A • Radio technology : EnOcean (IEC 14543-3-10) 868 MHz, transmission power <10 mW • Data transmission : bidirectional, internal antenna • Operating range temperature (°C) : -20..+60 • Operating ranges temperature (°C) : -20..+60 • Operating range humidity : max. 85% rH non-condensing • Power supply : 15..24 V = (±10%) SELV, 24 V ~ (±10%) SELV, 100..240 V ~ • Power consumption : typ. 1,5 W (24 V =), 3,4 VA (24 V ~), typ. 0,5 VA (230 V ~) • Enclosure : ABS • Colour : red • Protection (IP) : IP20, according to EN 60529 • Connection : terminal block, max. 1,5 mm² • Mounting : flush-mounted in standard EU box (Ø=60 mm, depth min. 45 mm) • Packaging length (mm) : 90 • Packaging width (mm) : 90 • Packaging height (mm) : 35 • Packaging : case packaging • Device length (mm) : 70 • Device width (mm) : 48
