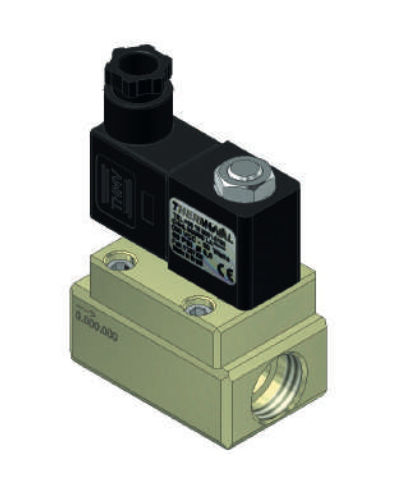

Servo-assisted solenoid valve 134682-wayNCair
Add to favorites
Compare this product
Characteristics
- Control
- servo-assisted
- Ports/positions
- 2-way
- Function
- NC
- Medium
- for water, air, oil, for LPG
- Body
- female, stainless steel, brass
- Other characteristics
- ISO, piston
- Valve plug seal material
- NBR
- DN
12 mm
(0.472 in)- Voltage
220 V, 240 V
- Temperature
200 °C
(392 °F)
Description
Port size Female Thread 1/2” BSP (ISO 228/1) - Input.
Female Thread 1/2” BSP (ISO 228/1) - Output.
Pressure range Min. 5/Max. 250
Housing material Brass (ASTMB16). Piston/Pole-StainlessSteel (AISI430 Fr).Spring -StainlessSteel (AISI
302). Wire- Enameled Gopper Class HR20CTC (EC60517-8)
Media Minerals oils, hydraulic fluids, LGP, NG air and water.
