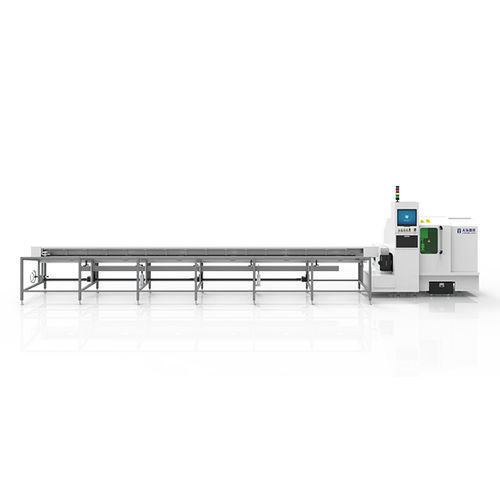

Laser cutting machine GFPD6005-B

for aluminumfor stainless steelfor steel

Product overview
The GFPD6005-B is a laser pipe cutting machine designed for high-efficiency cutting and surface processing of round tubes. Compatible materials include carbon steel, stainless steel, alloy steel, aluminum, copper and similar metals. Suitable for industries requiring precise tube processing and high throughput.

Applications

• Household appliance components
• Bathroom and home improvement metal fixtures
• Fitness equipment frames
• Water pipe fittings manufacturing
• Automotive parts and assemblies
• Construction and structural pipe fabrication

Features

• Integrated large-capacity material magazine with fully automatic feeding — enables one operator to supervise multiple machines.
• Surface carving and cutting capability on round pipes for profile and marking tasks.
• High-speed pipe cutting with excellent production efficiency.
• Minimal leftover length: depending on raw material length, short tailings can be reduced to 40 mm.
• Simple maintenance requirements and low operating costs for industrial production environments.

Specifications
Model: GFPD6005-B
Round pipe cutting range: φ6 mm–φ60 mm
Chuck hole diameter: φ68 mm (customizable)
Maximum air travel speed: 80 m/min
Acceleration limit: 1.0 G
X-axis travel: 600 mm
Z-axis travel: 100 mm
Y-axis travel: 6100 mm
W-axis max speed: 120 r/min
Feeding length max: 6000 mm
Cutting length: ≤ 600 mm
X, Z axis positioning accuracy: ±0.03 mm
X, Z axis repeatability: ±0.02 mm
Cutting accuracy: ±0.2 mm + 2× pipe error
Operating temperature range: 0–40 °C
