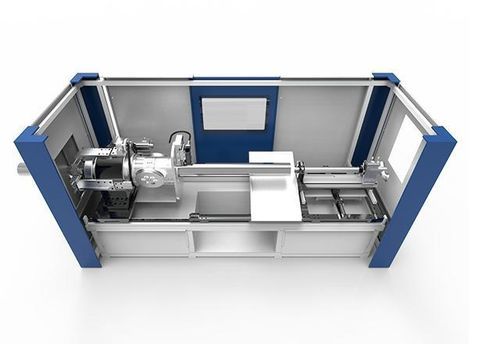

Fiber laser cutting machine GFPC6012

for metalfor aluminumfor stainless steel

Product overview
The GFPC6012 is a fully automatic fiber laser cutting solution designed for inline cutting and processing of thin‑walled metal pipes used in thermos cups, kettles, electric appliances and similar products. The system processes carbon steel, stainless steel, alloy steel, aluminum, copper, titanium and other common pipe materials while meeting fixed‑length cutting requirements in production lines.

Key features

• Fully automated design with high positioning and processing accuracy to satisfy precision online fixed‑length cutting.
• Direct integration from thin‑walled metal pipe production line into the cutting system; customizable ring‑cut clamping module coordinates with the cutting head for stable processing.
• Automatic setting and production of short pipe lengths per customer requirements; integrated cutting, cupping and unloading.
• Patented coaxial anti‑splash and slag blocking mechanism ensuring smooth internal surfaces without slag residue.
• High cutting precision with smooth, flat edges and minimal deformation in the cut area.
• Low operating and follow‑up maintenance costs due to efficient mechanical and optical design.
• Patented anti‑optical‑fiber winding mechanism to extend optical fiber service life.

Specifications

• Model: GFPC6012
• Round pipe cutting range: φ80‑120 (customizable)
• Chuck hole diameter: 130 mm
• Acceleration limit: 0.6
• Z axis travel: 120 mm
• W‑axis speed upper limit: 60
• Cutting length: Standard 600 mm (customizable)
• Cutting accuracy: ±0.2 mm
• Machine operating environment temperature: 0~40℃
• Commodity ID: 1475857178433310720

Applications

• Inline cutting for production of thermos cups, thermos pots and electric kettles.
• Precision cutting of thin‑walled metal pipes for appliance, automotive and industrial components.
• High‑volume manufacturing lines requiring fixed‑length pipe sections.

Buyer benefits

• Seamless integration into existing production lines reduces manual handling and cycle time variability.
• Consistent internal finish and low slag reduce rework and downstream cleaning operations.
• Customizable cutting length and clamping modules adapt to product variations and shorten setup time.
• Design elements that protect the optical fiber and reduce maintenance extend uptime and lower lifecycle costs.

Sample display

• Fully automatic fiber laser cutting machine for pipe production (sample image)
• Fully automatic fiber laser cutting machine for pipe production (sample image)
• Fully automatic fiber laser cutting machine for pipe production (sample image)
