Laser cutting machine GPRF series
fiber laserfor aluminumfor stainless steel

Laser cutting machine - GPRF series - Tianhong Laser - fiber laser / for aluminum / for stainless steel
Laser cutting machine - GPRF series - Tianhong Laser - fiber laser / for aluminum / for stainless steel
Add to favorites
Compare this product

Characteristics

Technology
laser, fiber laser
Material
for aluminum, for stainless steel, for carbon steel
Product handled
sheet metal, tube
Control type
servo-driven
Configuration
double table, with rotating table
Other characteristics
high-precision, high-speed, with servo-motor, pneumatic, manual, rack-and-pinion, combined, with exchange table, air-assisted, rotary operated
X travel

2,450 mm
(96.46 in)

Y travel

Min.: 3,000 mm
(118.11 in)

Max.: 6,000 mm
(236.22 in)

Z travel

250 mm
(10 in)

Tube diameter

Min.: 8 mm
(0 in)

Max.: 160 mm
(6 in)

Laser power

Min.: 1,000 W

Max.: 3,000 W

Repeatability

0.03 mm
(0.0012 in)

Acceleration

9.81 m/s²
(32.19 ft/s²)

Overall length

8,641 mm
(340 in)

Maximum width

3,640 mm
(143 in)

Height

2,293 mm
(90 in)

Weight

Min.: 7,000 kg
(15,432.36 lb)

Max.: 11,000 kg
(24,250.85 lb)

Load capacity

Min.: 1,200 kg
(2,645.5 lb)

Max.: 2,000 kg
(4,409.2 lb)

Description

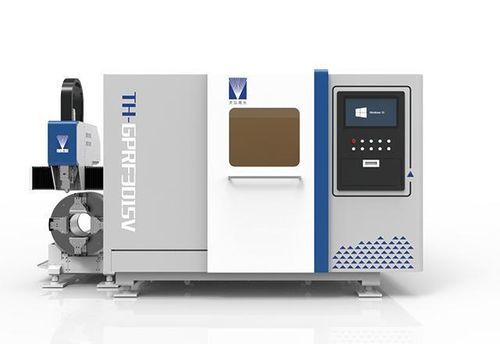

Product name Double Exchange Tube Plate Integrated Laser Cutting Machine

Overview Cutting and processing of metal sheets and pipes. Suitable for aviation aluminum, stainless steel, low carbon steel and other metals.

Features
  • Flexible fiber laser transmission with a compact cutting head; no reflective lens, minimal maintenance and negligible transmission loss
  • High cutting speed, precision and productivity with low environmental impact
  • Unique air-cutting technology to reduce air consumption and lower operating costs
  • Dual-function design: capable of cutting both plates (sheets) and tubes (pipes)
  • Optional rotating propulsion chuck or fixed rotary chuck to meet different feeding and clamping needs
  • Servo motors with precision rack-and-pinion drive for high rapid-traverse speed


Product details
  • Commodity name: Double Exchange Tube Plate Integrated Laser Cutting Machine
  • Commodity ID: 1475857269978189824


Technical specifications
  • Model: GPRF3015; GPRF6020
  • Laser power: 1000-3000W (both models)
  • X-axis travel: 2450 mm (both models)
  • Y1-axis travel: GPRF3015 = 3000 mm (plate) / 6000 mm (tube); GPRF6020 = 6000 mm (plate) / 6000 mm (tube)
  • Z-axis travel: 250 mm (both models)
  • Maximum acceleration: 1.0 G (both models)
  • X/Y single-axis maximum positioning speed: 105 mm/min (both models)
  • Maximum workbench load: GPRF3015 = 1.2 T; GPRF6020 = 2.0 T
  • Machine weight: GPRF3015 = 7 T; GPRF6020 = 11 T
  • Machine dimensions: 8641 × 3640 × 2292.5 mm (subject to actual object) (both models)
  • Fixed chuck through-hole diameter: φ165 mm (both models)
  • Clamping pipe range: GPRF3015 = φ8–φ120, □8–□85; GPRF6020 = φ10–φ160, □10–□110
  • Maximum pipe clamping weight: ≤ 120 KG (both models)
  • Shortest tailstock: 260 mm (both models)
  • Y2-axis rapid traverse speed: 80 m/min (both models)
  • Chuck rotation speed: 0–80 r/min (both models)
  • Chuck maximum acceleration: 1.0 G (both models)
  • Y2-axis positioning accuracy: ±0.03 mm/1000 mm (both models)
  • Y2-axis repeat positioning accuracy: ±0.03 mm/1000 mm (both models)
  • U-axis repeat positioning accuracy: ≤ 7 arc minutes
  • Chuck drive: manual / pneumatic optional
  • Nesting: optional
  • Operating environment: 0–40℃
