Fiber laser cutting machine GRF series

for aluminumfor stainless steelfor carbon steel

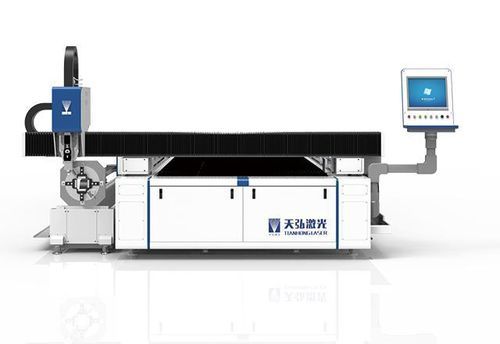

Product name: Single Platform Tube Plate Integrated Laser Cutting Machine
Commodity ID: 1475857253276471296

Description: Machine for cutting and processing metal sheets and tubes including aviation aluminum, stainless steel and low‑carbon steel. Dual‑function design supports both plate and tube cutting on a single platform, suitable for industrial fabrication, structural parts and aerospace component processing.

Features:

• Fiber laser with flexible transmission and compact cutting head; no reflective lens, minimal routine maintenance
• High cutting speed and precision for efficient production
• Air‑cutting technology reduces compressed air consumption and lowers operating cost
• Dual‑function capability: plate cutting and tube cutting in one machine
• Optional rotating propulsion chuck or fixed rotating chuck to meet different feeding requirements
• Servo motors with precision rack‑and‑pinion drive for fast rapid traverse

Specifications (examples): model: GRF3015 / GRF6020
Laser power: 1000–3000 W
X‑axis travel: 2400 mm / 2850 mm
Y1‑axis travel: 3000 mm / 6000 mm
Z‑axis travel: 250 mm
Maximum acceleration: 0.8G (axes); chuck max. acceleration: 1.0G
X/Y single‑axis max positioning speed: 96 m/min
Workbench maximum load: GRF3015: 1 T; GRF6020: 2 T
Machine weight: GRF3015: 3.9 T; GRF6020: 6.8 T
Machine dimensions: GRF3015: 5150×2380×1840 mm; GRF6020: 6150×2380×1840 mm (subject to actual object)
Fixed chuck through‑hole diameter: φ165 mm
Clamping pipe range: φ8–φ120, □8–□85 / φ10–φ160, □10–□110
Maximum pipe clamping weight: ≤120 kg
Shortest tailstock: 260 mm
Y2‑axis rapid speed: 80 m/min
Chuck rotation speed: 0–80 r/min
Chuck max. acceleration: 1.0G
Y2‑axis positioning accuracy: ±0.03 mm/1000 mm; repeat positioning accuracy: ±0.03 mm/1000 mm
U‑axis repeat positioning accuracy: ≤7 arc minutes
Chuck drive: manual / pneumatic optional
Nesting: optional
Operating environment: 0–40 ℃

Technical characteristics:

• Series / model family: GRF series (examples: GRF3015, GRF6020)
• Laser power range: 1000–3000 W
• Work envelope examples: X up to 2400 / 2850 mm; Y up to 3000 / 6000 mm; Z 250 mm
• Max acceleration (axes): 0.8G; chuck max acceleration: 1.0G
• Positioning accuracy Y2 and repeatability: ±0.03 mm per 1000 mm
• Chuck rotation speed: 0–80 r/min; U‑axis repeat accuracy ≤7 arc minutes
• Clamping ranges: pipes up to φ160 (model dependent); max clamping weight ≤120 kg
• Workbench load and machine weight examples: 1 T / 2 T; ~3.9 T / 6.8 T
• Dimensions examples: 5150×2380×1840 mm or 6150×2380×1840 mm
• Operating temperature range: 0–40 ℃
