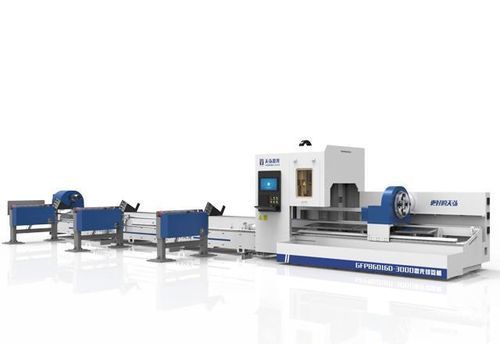

Laser cutting machine GFPB series

for stainless steeltubePLC-controlled

Product summary
This equipment performs automated laser cutting of round and square tubes for industries such as fitness equipment, oil pipelines, construction machinery, automotive manufacturing and household appliances. It supports long-length processing with automatic loading/unloading and is designed for high-precision cutting of slender and thick-walled pipes.

Attributes

• Commodity name: GFPB Two-chuck Laser Pipe Cutting Machine
• Commodity ID: 1475857171219107840

Features

• Bus follow-up control to enhance cutting positional accuracy
• Fully automatic loading and unloading system to reduce labor and increase throughput
• Self-centering four-jaw chuck with patented design to eliminate rope swing and improve accuracy on slender tubes
• Front chuck auto-avoidance and lift-assisted blanking enable processing without strict blank length limits
• Configurable for processing round tubes from Ø15 to Ø320 (model-dependent ranges available)
• Operator-friendly control with real-time status feedback for orderly production

Specifications (table)
model | GFPB6016D | GFPB6022D | GFPB6032D
Laser power | 1000-4000W | 1000-4000W | 1000-4000W
X-axis path | 500 mm | 500 mm | 500 mm
Y-axis path | 6200 mm | 6200 mm | 6200 mm
Z axis path | 200 mm | 200 mm | 200 mm
Fixed Chuck Through Hole Diameter | φ165mm | φ225mm | φ325mm
Clamping pipe range | φ10-φ160, □10-□110 | φ10-φ220, □10-□155 | φ10-φ320, □10-□225
Maximum Pipe Clamping Weight | ≤ 120KG | ≤ 170KG | ≤ 400KG
Chuck rotation speed | 0-80 r/min | 0-70 r/min | 0-60 r/min
Maximum cutting length | 6000 mm (assisted blanking for >2000 mm) | 6000 mm (assisted blanking for >2000 mm) | 6000 mm (assisted blanking for >2000 mm)
Shortest tail | 70 mm | 80 mm | 90 mm
Minimum incoming length | 2000 mm | 2000 mm | 2000 mm
XY axis positioning accuracy | ±0.03 mm/1000 mm | ±0.03 mm/1000 mm | ±0.03 mm/1000 mm
XY axis repeat positioning accuracy | ±0.03 mm/1000 mm | ±0.03 mm/1000 mm | ±0.03 mm/1000 mm
Cutting product precision | ±0.3 mm (excluding pipe tolerance, based on 1 mm stainless steel test) | ±0.3 mm (excluding pipe tolerance, based on 1 mm stainless steel test) | ±0.3 mm (excluding pipe tolerance, based on 1 mm stainless steel test)
Machine tool weight | About 5000 kg | About 5000 kg | About 6000 kg
Machine tool dimensions | 10767×1812×2408 mm (GFPB6016D / GFPB6022D); 10767×2050×2408 mm (GFPB6032D) (approx.)
Machine tool operating environment | 0-40 ℃ | 0-40 ℃ | 0-40 ℃

Technical specifications

• Series: GFPB (models: GFPB6016D, GFPB6022D, GFPB6032D)
• Laser power range: 1000–4000 W
• Axes: X 500 mm, Y 6200 mm, Z 200 mm
• Fixed chuck through hole: φ165 / φ225 / φ325 mm depending on model
• Clamping range: φ10–φ160 (GFPB6016D), φ10–φ220 (GFPB6022D), φ10–φ320 (GFPB6032D); square tube ranges listed above
• Maximum clamping weight: ≤120 kg / ≤170 kg / ≤400 kg (by model)
• Chuck speed: 0–80 / 0–70 / 0–60 r/min (by model)
• Max cutting length: 6000 mm (assisted blanking for >2000 mm)
• Minimum incoming length: 2000 mm; shortest tail: 70 / 80 / 90 mm
• Positioning accuracy (XY): ±0.03 mm/1000 mm; repeatability: ±0.03 mm/1000 mm
• Cutting precision: ±0.3 mm (test condition: 1 mm stainless steel)
• Approx. machine weight and footprint as specified; operating temperature: 0–40 ℃
