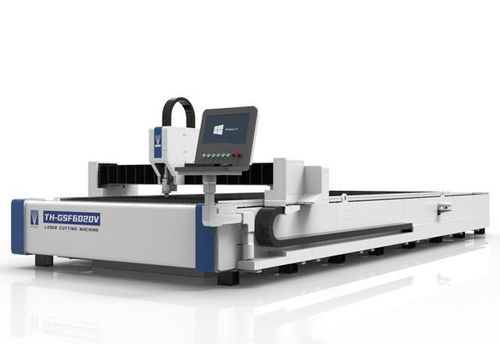

Laser cutting machine TH-GSF seriesfor stainless steelfor carbon steelfor copper
Add to favorites
Compare this product
Characteristics
- Technology
- laser
- Material
- for stainless steel, for carbon steel, for copper
- Product handled
- for metal sheets
- Applications
- for industrial applications, for the automotive industry, for metal fabrication
- Configuration
- large-format, flatbed
- Other characteristics
- high-precision, high-performance, high-power
- X travel
Max.: 12,000 mm
(472.44 in)Min.: 600 mm
(23.62 in)- Y travel
Max.: 2,500 mm
(98.43 in)Min.: 600 mm
(23.62 in)- Z travel
Max.: 110 mm
(4 in)Min.: 100 mm
(4 in)- Laser power
Max.: 12,000 W
Min.: 1,000 W
- Repeatability
0.03 mm
(0.0012 in)- Height
1,900 mm
(75 in)
Description
Product overview
Features
Sample display
Models and main dimensions
Technical specifications
- Product name: GSF flat bed laser cutting machine (TH-GSF series).
- Application industries: sheet metal industry; kitchen utensils; chassis and hardware cabinets; refrigeration equipment; environmental protection equipment; automotive manufacturing; agricultural machinery; elevator manufacturing; steel structure construction.
Features
- Available laser power ranges from 1000W up to 12000W depending on model and configuration.
- Machine tool with high-strength welded bed and specially designed aluminum beam for rigidity and strength.
- High precision with large transmission torque, low transmission error and good dynamic performance.
- Adaptive optical design and power-adaptive control for efficient processing.
- X and Y axes driven by precision helical gears.
- Centralized process database with adjustable process parameters.
Sample display
- Brass cutting samples
- Stainless steel cutting samples
- Carbon steel cutting samples
Models and main dimensions
- TH-GSF3015V — Laser power 1000–3000W, Z travel 110mm, Positioning accuracy ±0.05mm/m, Repeatability ±0.03mm, Processing format 3000×1500mm, Machine dimensions 5150×2535×1900mm
- TH-GSF4020V — Laser power 1000–3000W, Z travel 110mm, Positioning accuracy ±0.05mm/m, Repeatability ±0.03mm, Processing format 4000×2000mm, Machine dimensions 6200×2900×1900mm
- TH-GSF6020V — Laser power 1000–3000W, Z travel 110mm, Positioning accuracy ±0.05mm/m, Repeatability ±0.03mm, Processing format 6000×2000mm, Machine dimensions 8150×2900×1900mm
- TH-GSF6025 — Laser power 3000–6000W, Z travel 110mm, Positioning accuracy ±0.05mm/m, Repeatability ±0.03mm, Processing format 6000×2500mm, Machine dimensions 7790×3380×1900mm
- TH-GSF8025 — Laser power 3000–6000W, Z travel 110mm, Positioning accuracy ±0.05mm/m, Repeatability ±0.03mm, Processing format 8000×2500mm, Machine dimensions 10050×3380×1900mm
- TH-GSF12025 — Laser power 6000–12000W, Z travel 110mm, Positioning accuracy ±0.05mm/m, Repeatability ±0.03mm, Processing format 12000×2500mm, Machine dimensions 14500×3380×1900mm
- TH-GSF0606 — Laser power 1000–3000W, Z travel 100mm, Positioning accuracy ±0.05mm/m, Repeatability ±0.03mm, Processing format 600×600mm, Machine dimensions 1750×1400×1920mm
Technical specifications
- Product ID: 1475857164147511296
- Model series: TH-GSF series
- Laser power (by model): 1000–12000W depending on configuration
- Z axis travel: typically 110mm (100mm for TH-GSF0606)
- Positioning accuracy: ±0.05mm/m
- Repeatability: ±0.03mm
- Processing formats available: from 600×600mm up to 12000×2500mm depending on model
- Machine dimensions: vary by model (see models above)
