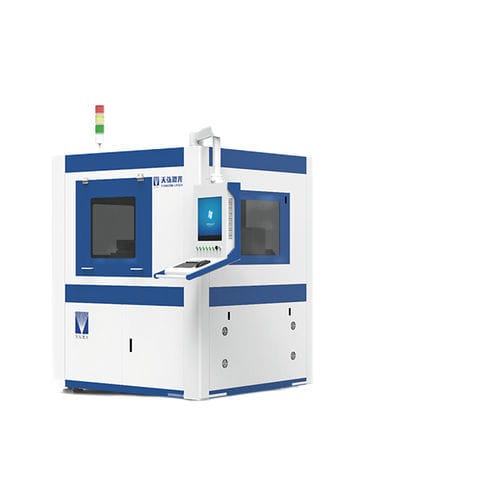

Laser cutting machine

for aluminumfor stainless steelfor brass

Product name
Laser precision cutting machine LPC-150-1000 600×600 mm

Materials & Application
Materials: used for cutting metal and non-metal materials including stainless steel, aluminum alloy, titanium alloy, galvanized sheet, brass, ceramics, silicon steel sheet, etc. Application: high-precision cutting for components and precision devices in industrial manufacturing, prototyping and tooling.

Features

• Supports precision cutting with positioning accuracy ±0.01 mm
• Enclosed design for safety and environmental compliance
• Human-centred motion system for intuitive operation
• Enclosed gantry with dual drive and single-table configuration
• X and Y axes use precision helical gear transmission
• Centralized process database for ready parameter adjustment

Sample display
Precision cutting samples available on request.

Specifications
Rated output power: 150W–1000W
Processing area (L×W): 600 mm × 600 mm (customizable)
X-axis travel: 620 mm
Y-axis travel: 620 mm
Z-axis travel: 100 mm
Geometric positioning accuracy (X,Y,Z): ±0.01 mm
Repeat positioning accuracy (X,Y,Z): ±0.01 mm
Maximum idle speed: 80 m/min
Maximum acceleration: 1.0 G
Cutting speed: depends on material and thickness
Kerf width: 0.1–0.6 mm
Edge roughness: Ra3.2–12.5 μm
Cutting path accuracy: ±0.01 mm (subject to configuration)
Section burr: 0.1–0.3 mm
Minimum setting unit: 0.001 mm
Table load capacity: 120 kg
Total installed power: 10 kW
Phases: single-phase
Rated voltage: 220 V
Continuous operation: 24 hours
Frequency: 50/60 Hz
Protection level: IP54

Technical specifications

• Rated output power: 150W–1000W
• Processing area (L×W): 600 mm × 600 mm (customizable)
• X-axis travel: 620 mm
• Y-axis travel: 620 mm
• Z-axis travel: 100 mm
• Geometric positioning accuracy (X,Y,Z): ±0.01 mm
• Repeat positioning accuracy (X,Y,Z): ±0.01 mm
• Maximum idle speed: 80 m/min
• Maximum acceleration: 1.0 G
• Cutting speed: depends on material and thickness
• Kerf width: 0.1–0.6 mm
• Edge roughness: Ra3.2–12.5 μm
• Section burr: 0.1–0.3 mm
• Minimum setting unit: 0.001 mm
• Table load capacity: 120 kg
• Total installed power: 10 kW
• Power supply: 220 V, 50/60 Hz
• Protection level: IP54
