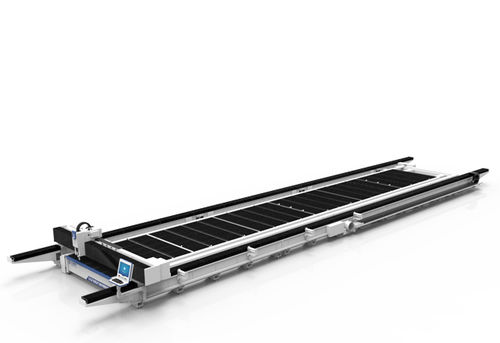

Laser cutting machine for aluminumfor stainless steelfor carbon steel
Add to favorites
Compare this product
Characteristics
- Technology
- laser
- Material
- for aluminum, for stainless steel, for carbon steel, for copper, for brass
- Product handled
- sheet metal, for thin sheet metal
- Control type
- with control software
- Applications
- for industrial applications
- Configuration
- large-format, gantry type
- Other characteristics
- high-speed, precision, high-power
- X travel
Min.: 18,000 mm
(708.66 in)Max.: 24,000 mm
(944.88 in)- Y travel
Min.: 2,500 mm
(98.43 in)Max.: 3,000 mm
(118.11 in)- Laser power
Min.: 1,000 W
Max.: 15,000 W
Description
Product overview
This ground-rail type laser cutting machine is designed for super large format metal plate processing. It supports high-speed cutting of carbon steel, stainless steel, aluminum, copper, brass and other medium-to-thin metal sheets. Cutting thickness and speed depend on selected laser power and process parameters. Suitable for industrial applications requiring large-format precision cutting and high throughput.
Features
Sample display
Technical specifications
This ground-rail type laser cutting machine is designed for super large format metal plate processing. It supports high-speed cutting of carbon steel, stainless steel, aluminum, copper, brass and other medium-to-thin metal sheets. Cutting thickness and speed depend on selected laser power and process parameters. Suitable for industrial applications requiring large-format precision cutting and high throughput.
Features
- Ultra-wide cutting range for super large plates; formats customizable to application
- Suitable for high-speed cutting of carbon steel, stainless steel, aluminum, copper and brass
- Large-format handling capacity for plates up to 24000mm × 3000mm (customizable)
- Laser power configurable from 1000W to 15000W to match material and thickness
- Ground-rail gantry structure with extruded high-strength aluminum alloy beams for stable motion
- X & Y axes driven by precision helical gears for accurate positioning
- Flexible motion control and centralized process database for repeatable cutting parameters
Sample display
- Brass cut samples
- Stainless steel cut samples
- Carbon steel cut samples
Technical specifications
- Product name: Ground Rail Type Super Large Format Laser Cutting Machine
- Product ID: 1475857250449510400
- Laser power: 1000W–15000W (customizable)
- Processing format: 18000×2500mm (standard; customizable)
- Example path (customizable): 24000mm × 3000mm
