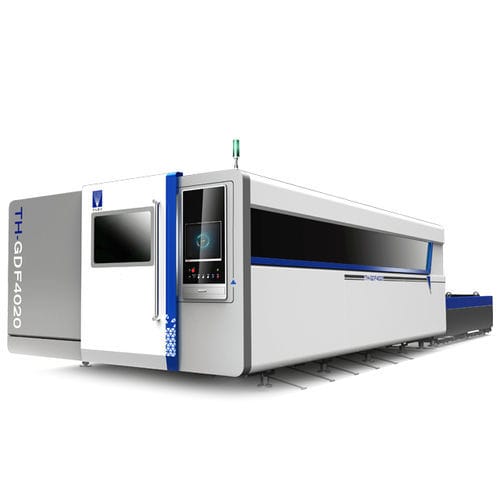

Laser cutting machine TH-GDF series

fiber laserfor steelsheet metal

Product overview
This laser cutting system is designed for high-throughput sheet metal processing across industrial applications including kitchen equipment, cabinets, refrigeration units, environmental equipment, automotive manufacturing, agricultural machinery, elevator production and steel structure fabrication.

Features

• High specification: core components sourced from first-tier European suppliers; intuitive control interface with real-time processing status feedback for orderly production.
• High reliability: upgraded CNC platform with EtherCAT bus control for stable motion; imported fiber laser source for extended lifetime and consistent output.
• Operator-friendly: flexible motion system and ergonomic layout; integrated process database minimizes manual setup and improves operator safety.

Models and key specifications

• TH-GDF4020 — Laser power: 3000–8000 W; Processing format: 4000×2000 mm; Machine dimensions: 11500×3650×2370 mm.
• TH-GDF6025 — Laser power: 4000–20000 W; Processing format: 6000×2500 mm; Machine dimensions: 15200×4100×2370 mm.
• TH-GDF8025 — Laser power: 6000–20000 W; Processing format: 8000×2500 mm; Machine dimensions: 19500×4100×2370 mm.
• Z axis travel: 120 mm (all models).
• Positioning accuracy: ±0.03 mm/m (all models).
• Repeatability: ±0.02 mm (all models).

Sample display

• Laser-cut samples available on request for multiple materials and thicknesses.

Technical specifications

• Product name: GDF Double Exchange Laser Cutting Machine
• Product ID: 1475857234997694464
• General laser power range: 3000–20000 W
• General processing format range: 4000×2000 mm – 8000×2500 mm
