Laser cutting machine TH-GPF series

for metalfor aluminumfor stainless steel

Product name

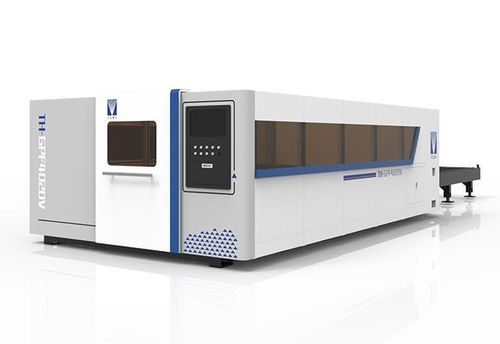

GPF double-exchange laser cutting machine (TH-GPF series)

Industries

• Sheet metal industry
• Kitchenware and catering equipment
• Cabinet and chassis manufacturing
• Hardware cabinets
• Refrigeration equipment manufacturing
• Environmental protection equipment
• Automotive manufacturing
• Agricultural machinery
• Elevator production
• Steel structure construction

Materials

• Metal sheets
• Carbon steel sheets
• Stainless steel sheets
• Copper sheets
• Aluminum alloy sheets
• Galvanized sheets
• Electrolytic sheets
• Silicon steel
• Titanium alloys
• Other metal materials

Features

• Human-centered motion system design for flexible operation and improved usability
• Enclosed gantry with dual drive and synchronous exchange-table system to reduce loading/unloading time and increase throughput
• High structural stability: gantry made from high-strength extruded aluminum alloy beam for reduced weight and improved dynamic response
• X and Y axes use precision helical gear transmission to ensure stable cutting accuracy
• Centralized process parameter database for ready-to-use and adjustable cutting programs

Specifications (table)
Model | Laser power | Z axis travel | Positioning accuracy | Repeatability | Processing format | Upper limit of loading capacity (exchange table) | Machine weight | Machine tool dimensions
TH-GPF3015 | 1000–4000 W | 250 mm | ±0.03 mm/m | ±0.03 mm | 3000×1500 mm | 1.2 T | 6 T | 8500×2900×2000 mm
TH-GPF4020 | 1000–4000 W | 250 mm | ±0.03 mm/m | ±0.03 mm | 4000×2000 mm | 1.5 T | 8.5 T | 10500×3450×2000 mm
TH-GPF6020 | 1500–6000 W | 250 mm | ±0.03 mm/m | ±0.03 mm | 6000×2000 mm | 2.0 T | 12 T | 14750×3450×2100 mm
TH-GPF6025 | 6000–20000 W | 350 mm | ±0.03 mm/m | ±0.03 mm | 6000×2500 mm | 2.8 T | 19.5 T | 15300×4100×2100 mm
TH-GPF8025 | 6000–20000 W | 350 mm | ±0.03 mm/m | ±0.03 mm | 8000×2500 mm | 3.6 T | 24 T | 19400×4100×2100 mm

Technical specifications

• Series / models: TH-GPF3015, TH-GPF4020, TH-GPF6020, TH-GPF6025, TH-GPF8025
• Laser power range: 1,000 W up to 20,000 W depending on model
• Z axis travel: 250 mm (models up to 6020), 350 mm (6025 and 8025)
• Positioning accuracy: ±0.03 mm/m
• Repeatability: ±0.03 mm
• Processing formats (work area): from 3000×1500 mm up to 8000×2500 mm depending on model
• Maximum loading capacity of exchange table: from 1.2 T up to 3.6 T depending on model
• Machine weight: from 6 T up to 24 T depending on model
• Machine tool dimensions: vary by model (see specifications table above)
