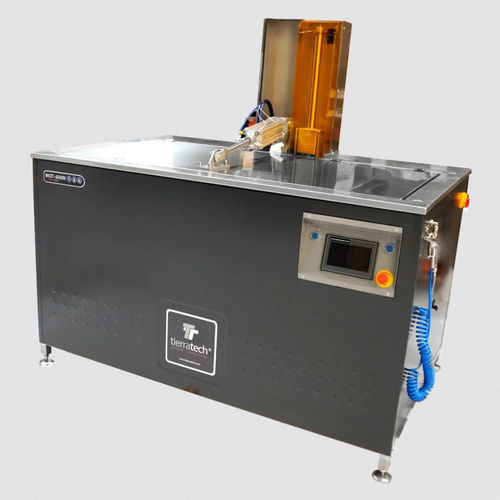

Ultrasonic cleaning equipment MOT-600N

manualautomotiveindustrial

The MOT-600N is a heavy-duty process cleaning machine engineered for professional automotive and industrial degreasing.

Featuring a 600-liter tank and a reinforced pneumatic lift for loads up to 350 kg, it automates the maintenance of engine components and mechanical assemblies. As a high-grade stainless steel cleaning machine, it delivers 10,200 Wp of peak power for consistent results.

This cleaning machine It is the perfect solution for removing stubborn grease and carbon in demanding environments, ensuring high-standard technical cleaning with every cycle.

• Ultrasonic generator: 5,100 Wp (10,200 Wp-p)
• Submersible emitters: 3 x 1,700 Wp (3,400 Wp-p), AISI 316, 34 high-performance PZT transducers, aluminum alloy body
• Operating frequency: 40 kHz (sweep ±2%)
• Capacity: 600 liters
• Weight: 500 kg approx.
• Useful dimensions: 1,220 × 660 × 410 mm
• Internal dimensions: 1,295 × 740 × 660 mm
• Heating element: 9,000 W (2 x 4,500 W)
• Power supply: 400 V
• Pneumatic loading platform: Up to 350 kg
• PLC with 8 inputs and 6 outputs
• External panel: Anti-fingerprint steel, 1 mm
• Thermal-acoustic insulation: 20 mm
• Reinforced pneumatic platform
• 1½” (≈38 mm) ball drain valve
• Height-adjustable feet
• Automatic stainless steel insulated cover with pneumatic cylinder, drip tray, and dead-man safety system
• Air gun for drying parts
• Integrated water flow system
• Optional: Filtration system with stainless steel filter and polypropylene/polyester bag

Discover how our Motor Clean series can revolutionize the efficiency and final finish in your workshop or production line.
