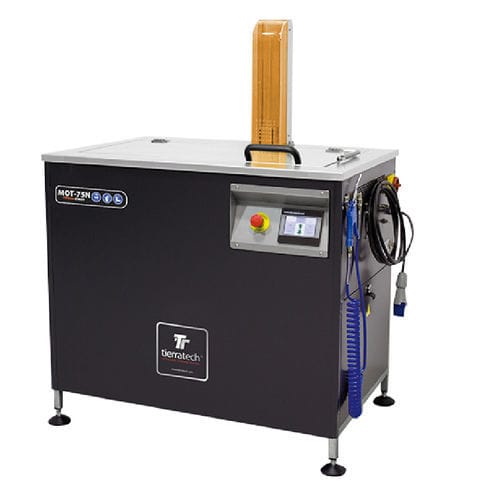

Ultrasonic cleaning equipment MOT-75N

manualautomotivestainless steel

The MOT-75N is a high-capacity process cleaning machine designed for intensive degreasing. Featuring a 100-liter tank and a reinforced pneumatic lifting platform, it automates the immersion and drainage of heavy parts up to 30 kg, ensuring a safe and ergonomic workflow.

Equipped with 20 high-performance transducers and an oil separation system, this process cleaning machine provides a superior finish on engine blocks and industrial components. It is the most competitive solution for removing stubborn grease and carbon deposits in professional automotive environments.

Technical Specifications:

• Tank capacity: 100 L
• Ultrasonic power: 1000 W (2000 Wp-p)
• Weight: 130 kg
• Pneumatic lift platform: up to 30 kg
• Useful dimensions: 620 × 325 × 260 mm
• Internal dimensions: 650 × 390 × 470 mm
• Heating element: 2250 W
• Power supply: 240 V / 10 A
• Ultrasonic Features:1 high-efficiency ultrasonic generator (1000 W / 2000 Wp-p)
• Operating frequency: 40 kHz, sweep ±2 %
• 16 PZT piezoelectric transducers with aluminum alloy body
• Tank in AISI 304L stainless steel (2 mm)
• 1 mm steel exterior panel, anti-fingerprint
• 20 mm thermal-acoustic insulation
• Recessed handles
• Stainless steel basket with anchoring system
• ½” ball drain valve
• Height-adjustable silentblock feet
• Heat-insulated stainless steel lid, manual opening

Summary:
The MOT-75N combines high ultrasonic power, robust construction, and a pneumatic lift platform for professional cleaning of parts and engines, including efficient oil and lubricant separation, ensuring performance and easy maintenance.
