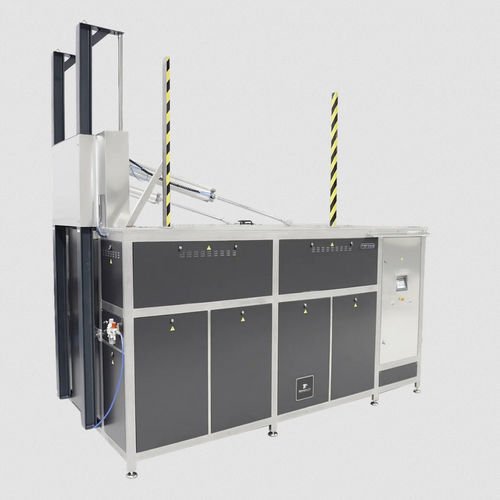

Ultrasonic cleaning equipment MOT-8000N

automaticindustrialprocess

The MOT-8000N is a high-performance process cleaning machine engineered for massive industrial components.

Featuring an 8,600-liter tank and a peak power of 68,000 W, this unit is the premier choice for the marine, railway, and energy sectors. As a robust process cleaning machine, it removes heavy grease, carbon deposits, and scale from oversized engine blocks and industrial tooling.

Built as a high-grade stainless steel cleaning machine, it features an integrated oil separation system to extend the life of the cleaning solution. This automatic cleaning machine ensures consistent, laboratory-grade results even in the most demanding industrial environments, featuring a programmable weekly calendar and intuitive PLC control.

Technical Specifications:

Tank Capacity: 8.600 Liters.
Ultrasonic Power: 34,000 Wp (68,000 Wp-p).
Transducers: 20 submersible AISI 316 emitters with high-performance PZT.
Frequency: 40 kHz with ±2 % sweep system.
Heating Power: 4 x 15,000 W (Industrial alloy).

Applications of the Motor Clean Range:

Technical cleaning of marine engines, power generators, and mining equipment.
Degreasing of complex parts with hard-to-reach cavities.
Precision workshops requiring an immersion cleaning machine with constant oil separation.
