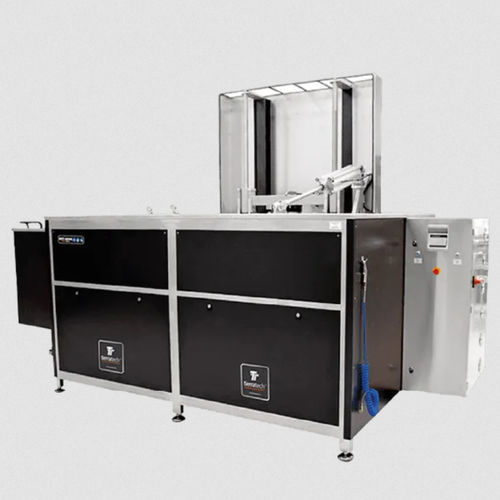

Ultrasonic cleaning equipment MOT-4000N

automaticindustrialstainless steel

The MOT-4000N is a high-performance process cleaning machine designed for heavy-duty automotive and industrial parts.

With a 3.900 -liter capacity and a reinforced pneumatic platform for loads up to 2,000 kg, it automates the degreasing of oversized components. As a premium stainless steel cleaning machine, it features 12 submersible emitters delivering 24,000 Wp for superior results.

This automatic cleaning machine is controlled via an intuitive PLC system, ensuring precision in every cycle. It is the ideal solution for removing stubborn grease and carbon in large-scale engine reconditioning and maintenance facilities.

Key Features:

• Tank capacity: 3.900 L
• Ultrasonic power: 24,000 Wp (48,000 Wp-p)
• Weight: 2,800 kg
• Pneumatic lifting platform: up to 2,000 kg
• Useful dimensions: 2280 × 1380 × 890 mm
• Internal dimensions: 2400 × 1500 × 1260 mm
• Heating element: 30,000 W
• Power supply: 400 V
• Ultrasonic Features:12 submersible emitters of 1,700 Wp (3,400 Wp-p) in 2.5 mm AISI 316 stainless steel with 34 high-performance PZT transducers
• Operating frequency: 40 kHz (Sweep System ±2 %)
• External steel panels 1 mm, anti-fingerprint, easy to clean
• 20 mm thermal-acoustic insulation
• Recessed handles
• Stainless steel basket with anchoring system for loading, unloading, and draining
• ½” ball valve for drainage
• Height-adjustable silentblock feet
• Insulated stainless steel cover, manual opening
