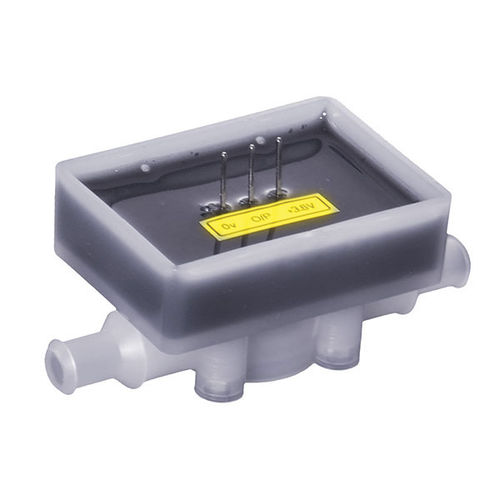

Turbine flow meter 800 series
for waterfor chemicalsin-line

turbine flow meter
turbine flow meter
turbine flow meter
turbine flow meter
Add to favorites
Compare this product


Characteristics

Technology
turbine
Fluid
for water, for chemicals
Installation
in-line
Communication
with pulse output
Applications
for low flow rates, for the pharmaceutical industry, for water treatment, for the food industry, laboratory, for the beverage industry, for the semiconductor industry
Other characteristics
digital, compact, precision, electronic
Process pressure

10 bar (145.04 psi)

Process temperature

Max.: 80 °C (176 °F)

Min.: -25 °C (-13 °F)

Volumetric flow rate

Max.: 15 l/min (4 us gal/min)

Min.: 0.1 l/min (0 us gal/min)

Repeatibility

0.1 %

Description

The Titan low power (4uA @ 3.3V) flow meter is designed to give high performance and competitive pricing with 6 flow ranges from 0.05 to 15 litres per minute. Its totally non-metallic wetted components makes this the ideal choice for the metering of aggressive chemicals including ultra-pure water. The standard inlet tubes are barbed to accept a hose size of 8mm although for OEM use alternatives are available. The bearings are made of sapphire for long life and reliability, the body is moulded PVDF as standard and the ‘O’ ring seal is typically Viton®. Low Power Flow Meters – 800 Series: Features At the heart of the low power flow meters are precision turbines that rotates freely on robust sapphire bearings and contains chemically resistant ceramic magnets that are detected through the chamber wall by a low power detector. The output is a stream of pulses that are readily interfaced with most electronic display or recording devices. This combination of materials and technology ensures a long life product with reliable operation throughout. Low cost Low Power Flow Meters PVDF 1- 2% FSD Sapphire bearings Low power sensor 6 Flow ranges 10 Bar rating VitonTM seal as standard 8mm hose tails 0.1% Repeatability 3.3 V 4uA -25°C Min to 80°C Max 50gms The Low Power Flow Meters – 800 Series are Ideal For Drink dispensing Laboratory tests Cooling equipment Active flow alarms Semiconductor plant OEM applications Low Power Flow Meters – 800 Series: Standard Materials of Construction Body and cap – PVDF ‘O’ Ring seal – Viton® Magnets – PVDF coated ceramic Bearings – Sapphire
